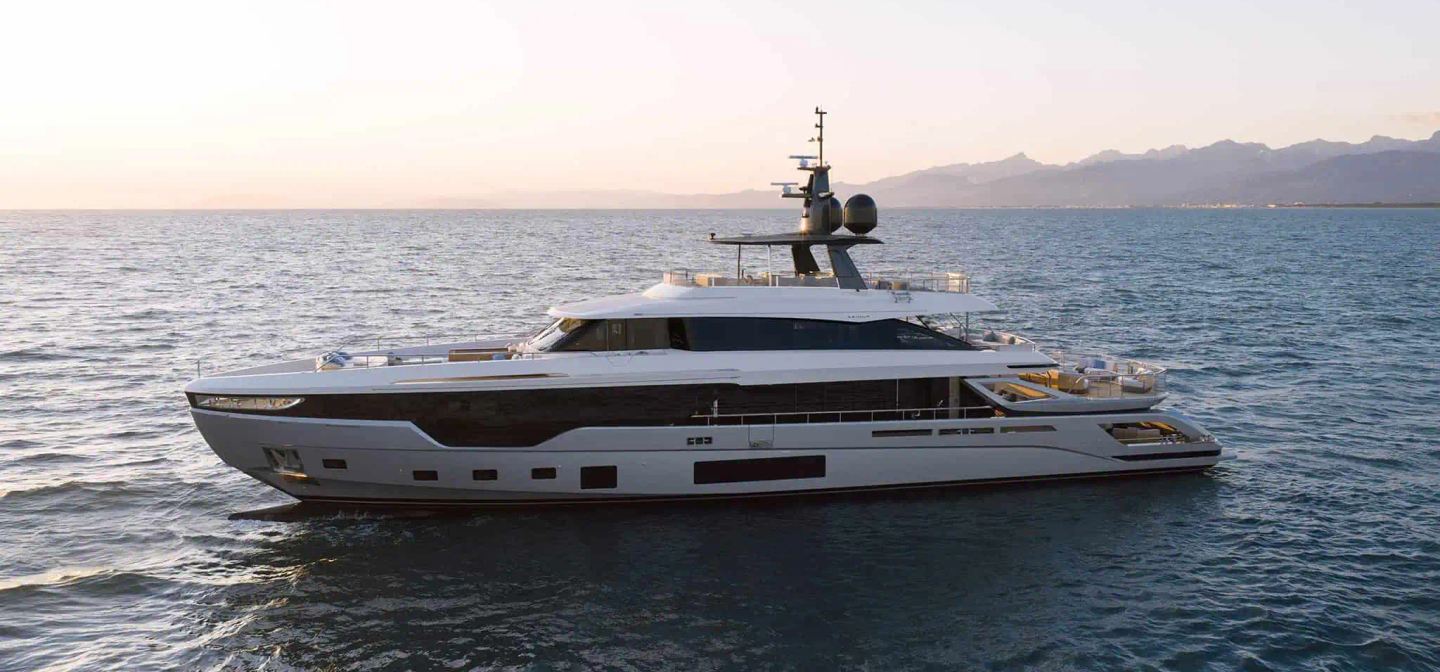

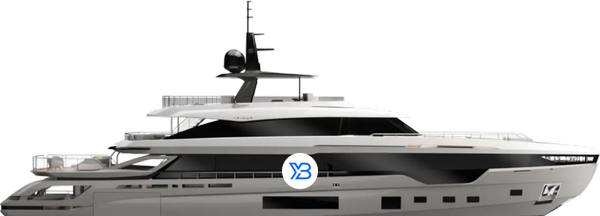

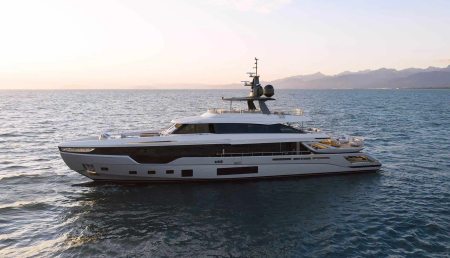

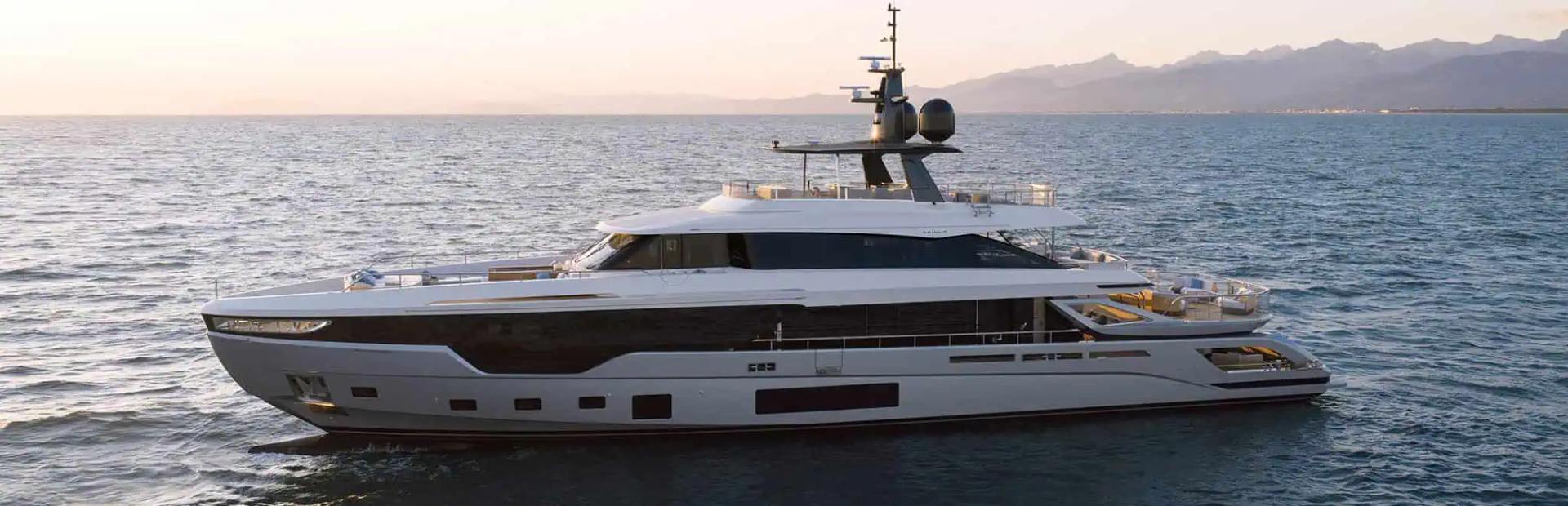

Azimut Grande Trideck Yacht Mk2, -

The Grande Trideck is a superyacht from Italian builder Azimut. The Grande Trideck is a yacht built from GRP, the fast displacement hull design will reach a top speed of 24 knots.

The Azimut Grande Trideck has five cabins and can accommodate up to ten guests. For those thinking of buying a new Azimut Grande Trideck, it is ideal for cruising and more.

38.22m
  • Guests

    12 Max

  • Cabins

    6 Max

  • Crew

    6 Max

Specs

  • Length
    38.22m
  • Accommodation
    12 Guests
  • Materials
    GRP Hull
    & Superstructure

Show Full Specs Hide Full Specs

Full Specification

Principal Characteristics

  • Length overall 38.22m
  • Beam 7.98m
  • Gross Tonnage 299 GT
  • Draft (full load) 2.02m
  • Fuel capacity 22,500 Litres
  • Fresh Water
    capacity
    4,000 Litres
  • Displacement (full load) 192 Tonnes
  • Max speed 24 Knots *
  • Cruising speed 21 knots *
  • Hull GRP
  • Superstructure GRP

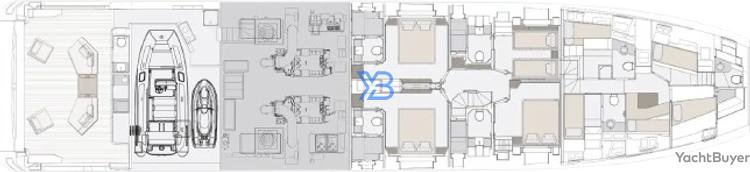

Accommodation

  • Guests 10 (Optional 12)
  • Berth details 4 x Double 2 x Single
  • Total Cabins 5 - 6
  • Cabins 1 x Master 3 x Double 1 x Twin
  • All cabins en suite Yes
  • Guest heads 8
  • Dedicated day heads 3
  • Berth details 4 x Double 2 x Single
  • Crew 6
  • Crew cabins 4
  • Crew heads -

Yacht Designers

  • Exterior Designer
    Alberto Mancini
  • Interior Designer
    M2 Atelier
  • Naval Architect
    Azimut & P.L Ausonio Naval Architecture

Engine Options & Performance

Standard Option



QTY

x 2

Performance

2400 HP

(1790 Kw)  each @ 2450 rpm

Maximum Speed

24 knots

Engine Details

Option #2



QTY

x 2

Performance

2600 HP

+200HP

(1939 Kw)  each @ 2450 rpm

Maximum Speed

-

Engine Details

* Depending on engine option

Show Full Specs Hide Full Specs

Azimut Grande Trideck FAQ

A selection of frequently asked questions about the Azimut Grande Trideck model

  • The Naval Architect for Azimut Grande Trideck is P.L Ausonio Naval Architecture. The Naval Architect for Azimut Grande Trideck is Azimut. The Interior Designer for Azimut Grande Trideck is M2 Atelier. The Exterior Designer for Azimut Grande Trideck is Alberto Mancini.
  • The Length Overall of Azimut Grande Trideck is 38.22m . Her Beam is 7.98m. Her draft at full load is 2.02m.
