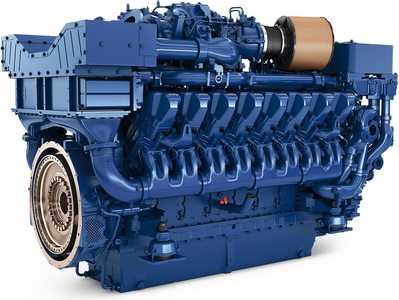

MTU 16V 4000 M65
Key Specifications
-
RATED OUTPUT:3,004 bhp / 2,240 KW / 3,045.76 mhp
-
RATED SPEED:Max 1,800 rpm
-
DISPLACEMENT:76 Litres
-
CYLINDERS:16
-
BORE & STROKERR -
-
EMISSION COMPLIANCE:-
16V 4000 M65 Full Specfications
Engine
-
Model Name:16V 4000 M65
-
Range:Series 4000
-
Manufacturer:MTU
Engine description
-
No' of Cylinders:16
Combustion parameters
-
Intake air temperature:25℃
-
Barometric pressure:1,000 mbar
-
Sea water temperature:25℃
Exhaust
-
Optimization of exhaust emissions:IMO Tier II/IMO Tier III
Dimensions
-
Height:2,072mm .
-
Width:1,573mm .
-
Length without gearbox:3,180mm .
-
Total displacement:76 Litres
-
Mass20,856kg
Other
-
In production?Yes
Models In Production with 16V 4000 M65 MTU Engines
