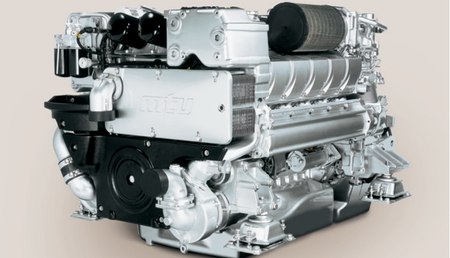

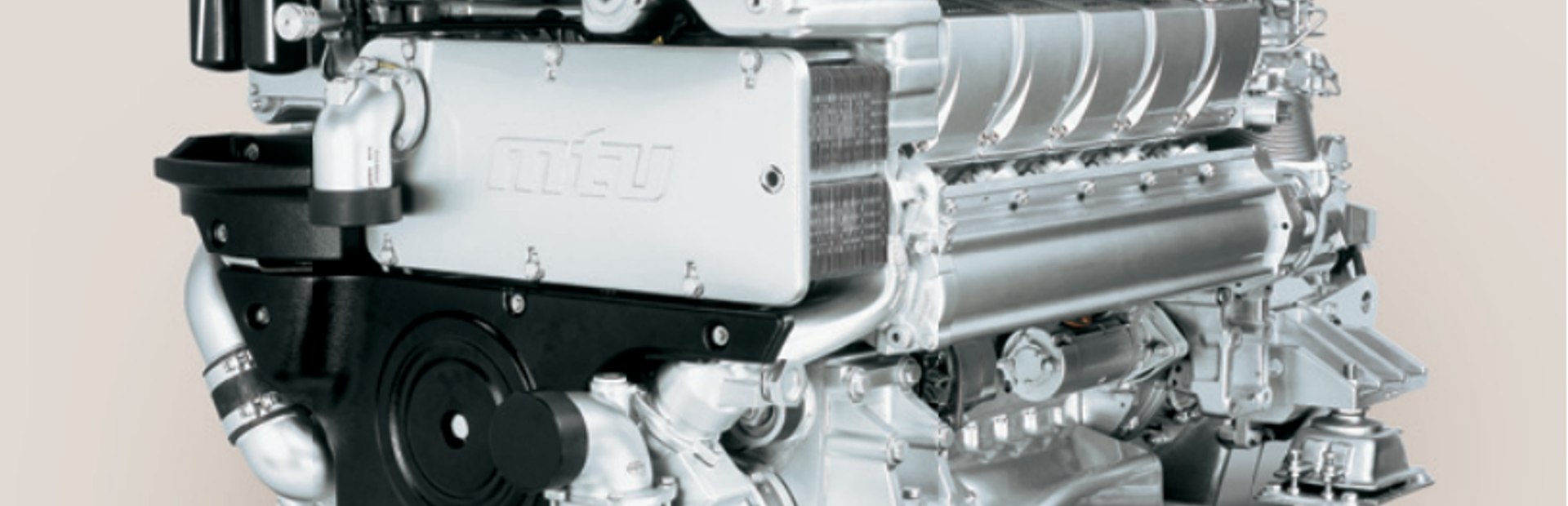

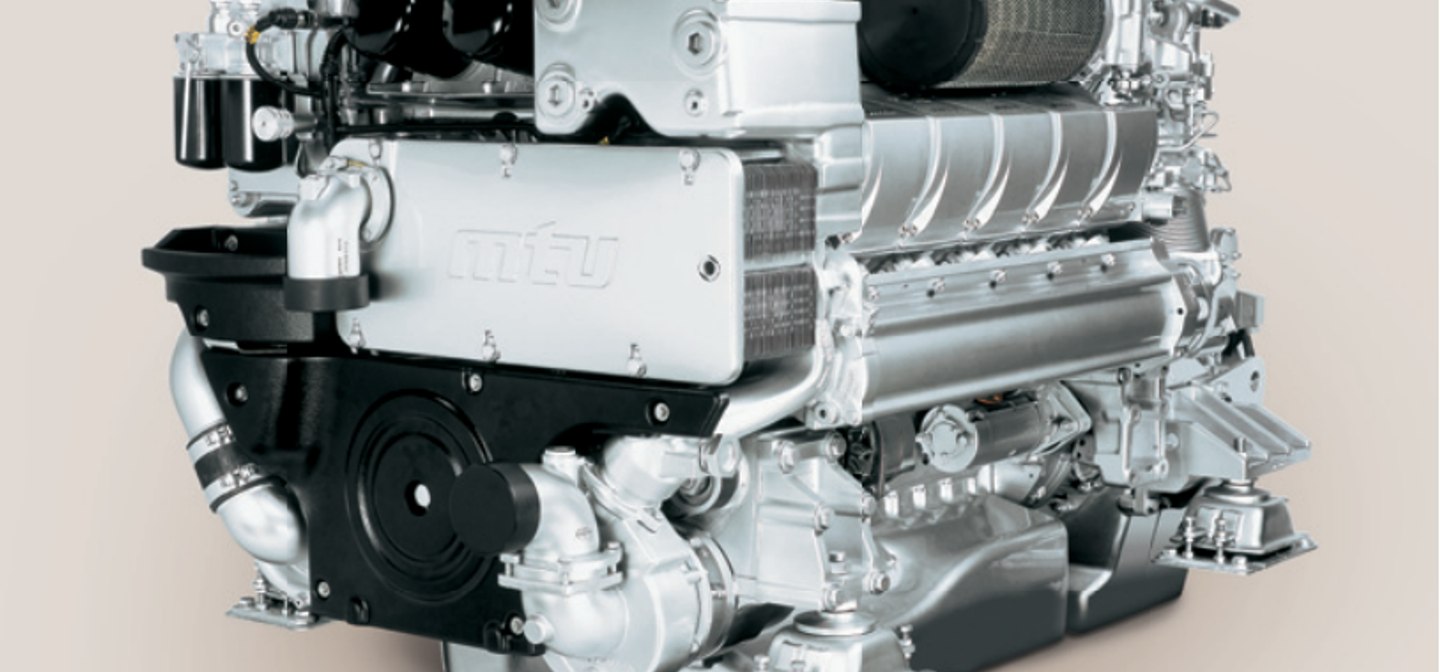

MTU 16V 2000 M94

Engine

• Model Name:
  16V 2000 M94
• Range:
  Series 2000
• Manufacturer:
  MTU

Engine description

• No' of Cylinders:
  16
• Cylinder displacement:
  1 Gallons
• Alternator output:
  80 Amp
• Flywheel housing:
  SAE 0
• Gearbox model:
  ZF 3070
• Cooling system:
  Water
• Site altitude above sea level:
  328' 1"

Performance data

• Rated power to DIN ISO:
  ICFN
• Bore
  5.31" .
• Stroke
  6.14" .
• Rotation:
  CCW(Standard Rotation)

Combustion parameters

• Fuel consumption:
  133 Gallons
• Barometric pressure:
  1,000 mbar

Exhaust

• Exhaust emissions:
  IMO Tier II/EPA Tier 2/EU Stage III A
• Optimization of exhaust emissions:
  IMO Tier II/EPA Tier 2/Directive 94/25/EC/EU Stage III A/RheinSchUO/RVIR

Dimensions

• Height:
  55.51" .
• Width:
  50.98" .
• Length without gearbox:
  98.86" .
• Length with gearbox:
  116.14" .
• Total displacement:
  9 Gallons
• Mass
  7,451.62lbs

Other

• In production?
  No
• Solas Compliance?
  Yes
