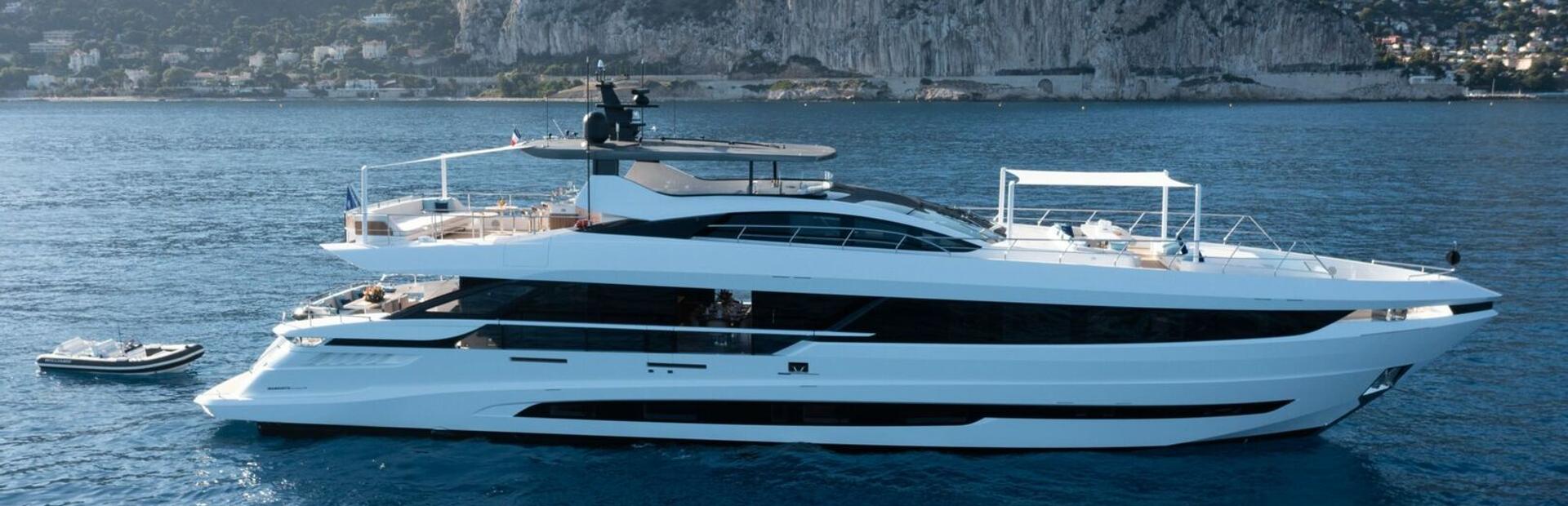

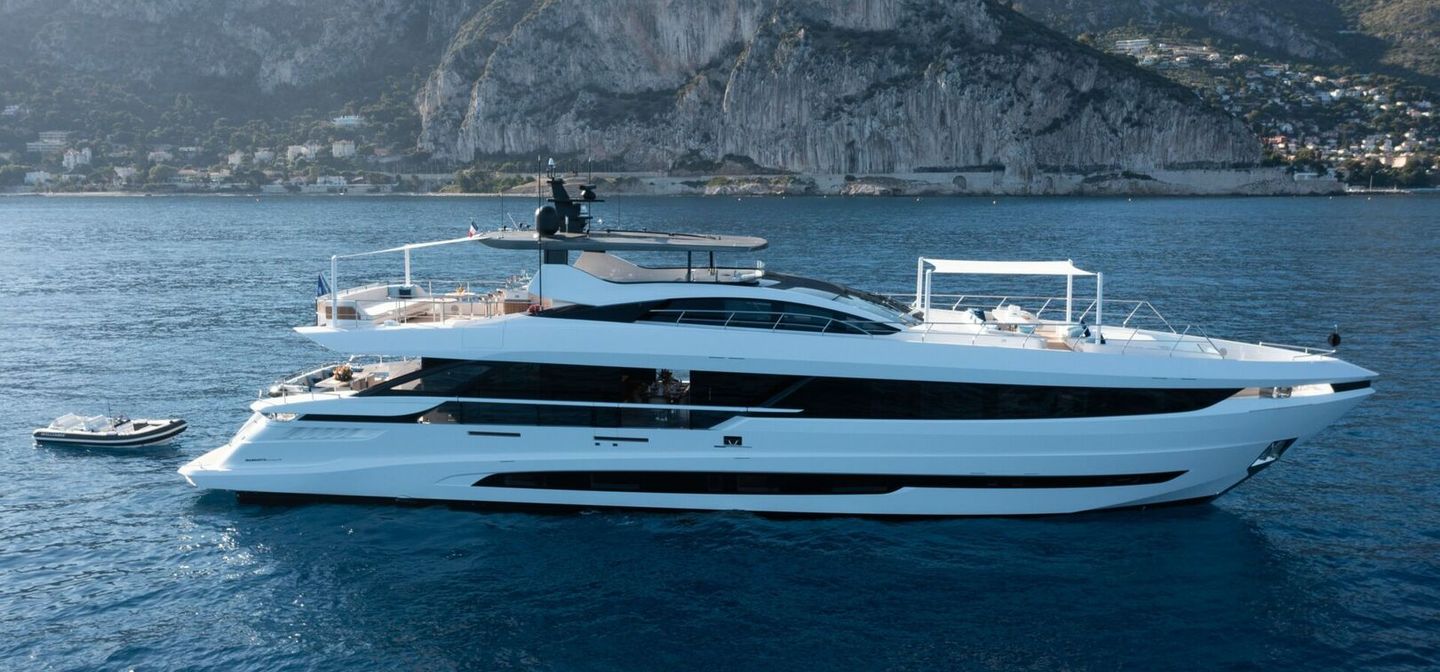

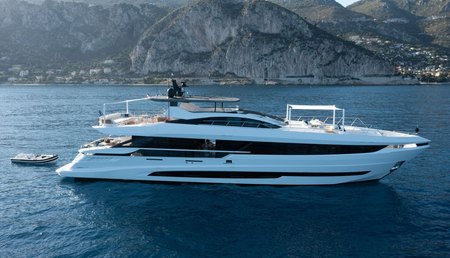

Mangusta GranSport 34 Yacht

The Mangusta GranSport 34 can accommodate twelve guests in five cabins. For those interested in buying a new Mangusta GranSport 34 , we can confirm it is ideal for cruising and more.

111' 3"
  • Guests

    12 Max

  • Cabins

    5 Max

  • Crew

    5 Max

Specs

  • Length
    111' 3"
  • Accommodation
    12 Guests
  • Materials
    Composite Hull
    & Superstructure
  • Max. Range
    3000 nm

Show Full Specs Hide Full Specs

Full Specification

Principal Characteristics

  • Length overall 111' 3"
  • Beam 24' 3"
  • Gross Tonnage 240 GT
  • Draft (full load) 6' 7"
  • Fuel capacity 2,774 Gallons
  • Fresh Water
    capacity
    528 Gallons
  • Displacement (full load) 290,000 Lbs
  • Displacement (half load) 270,000 Lbs
  • Max speed 24 Knots
  • Cruising speed 20 knots
  • Max Range 3000nm @20 knots
  • Hull Composite
  • Superstructure Composite

Accommodation

  • Guests 12
  • Berth details 3 x Double 4 x Single
  • Total Cabins 5
  • Master cabin 2 x En Suite
  • Double cabin 2 x En Suite
  • Twin cabin 2 x En Suite
  • Guest heads 7
  • Dedicated day heads 1
  • Berth details 3 x Double 4 x Single
  • Crew 5
  • Crew cabins 3
  • Crew heads 3

Yacht Designers

  • Exterior Designer
    Overmarine Group & Alberto Mancini
  • Interior Designer
    Overmarine Group
  • Naval Architect
    Overmarine Group

Engines & Performance

Standard Option



QTY

x 4

Performance

1000 HP

(735 Kw)  each @ 2400 rpm

Maximum Speed

24 knots

Engine Details

Show Full Specs Hide Full Specs

Rivals to Consider

We've hand-picked a series of similar and direct rival yachts help you identify the strengths of the Mangusta GranSport 34 among its peers.

Mangusta GranSport 34 FAQ

A selection of frequently asked questions about the Mangusta GranSport 34 model

  • The Naval Architect for Mangusta GranSport 34 is Overmarine Group. The Interior Designer for Mangusta GranSport 34 is Overmarine Group. The Exterior Designer for Mangusta GranSport 34 is Alberto Mancini. The Exterior Designer for Mangusta GranSport 34 is Overmarine Group.
  • The Length Overall of Mangusta GranSport 34 is 111' 3" . Her Beam is 24' 3". Her Draft at full load is 6' 7"
