NEW BENETEAU GRAN TURISMO 40 MK1

Accommodation

SALOON /CABIN (FRONT)
Saloon convertible into a double berth
Headboard wood decorpanels with indirect ighting
Folding wood table on telescopic leg
Storage and access under the seats and backrests
2 reading lights with USBA/C socket
Opening deck hatch with blind
Mirror on bathroom access door
Direct and indirect lighting
Privacy curtain
Storage space
Space for microwave oven (optional)
Fusion RA210 + 4 Speakers 7,7* (2 in T-Top + 2 foredeck cockpit)
Courtesy lighting in staircase
1 leathered handrail

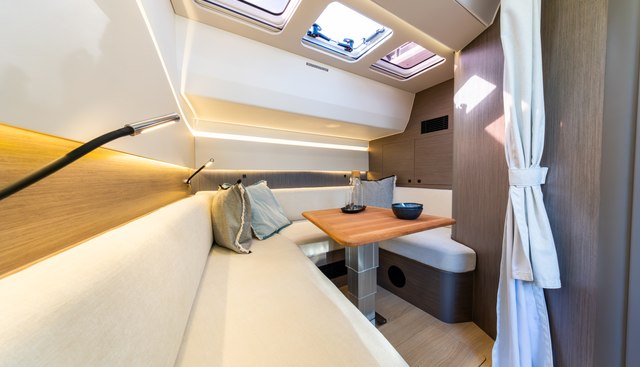

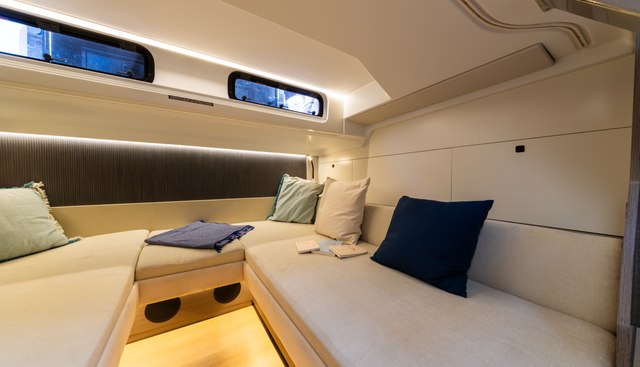

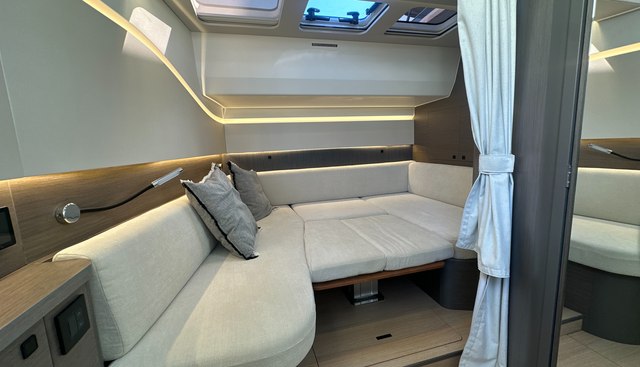

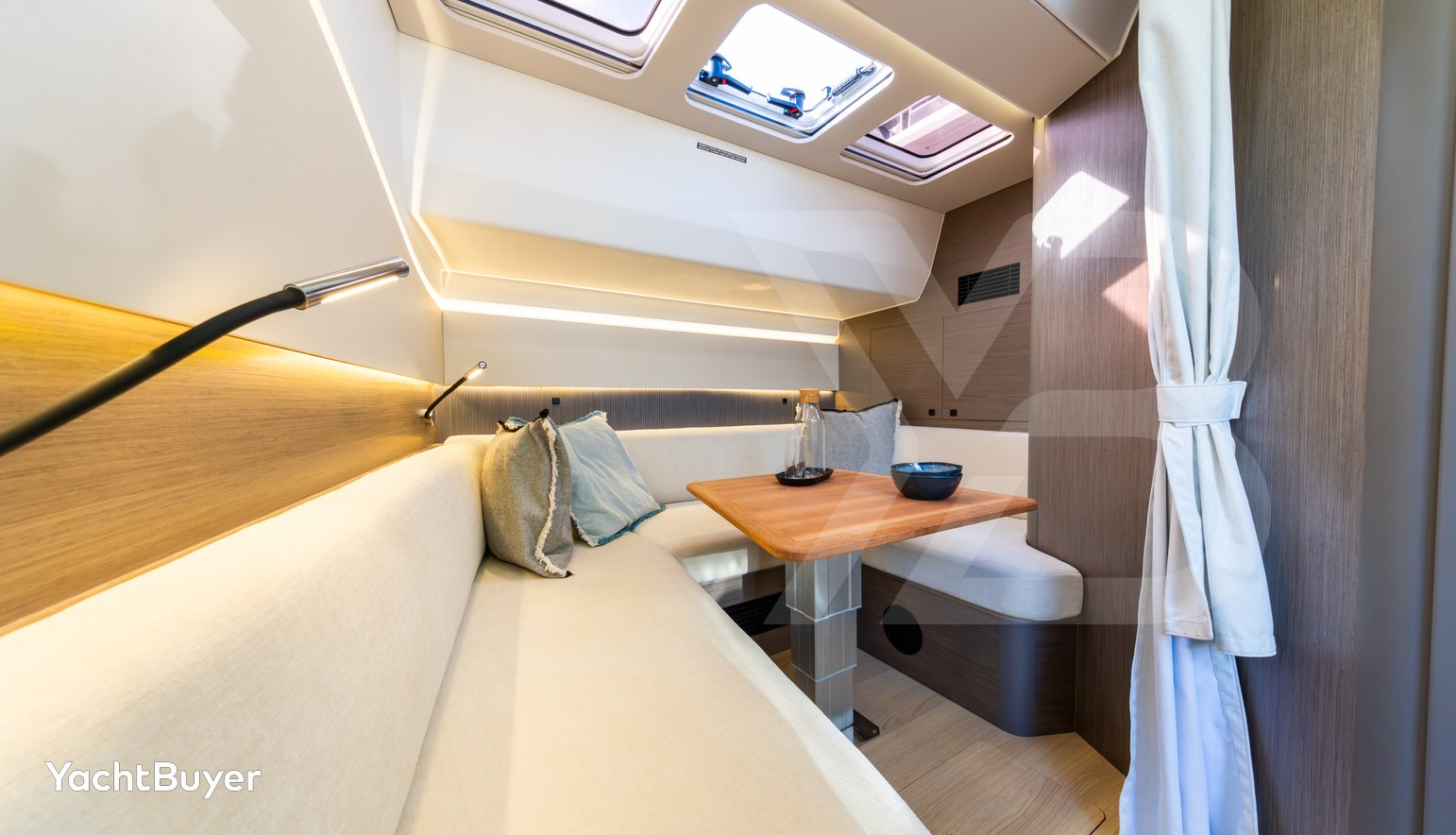

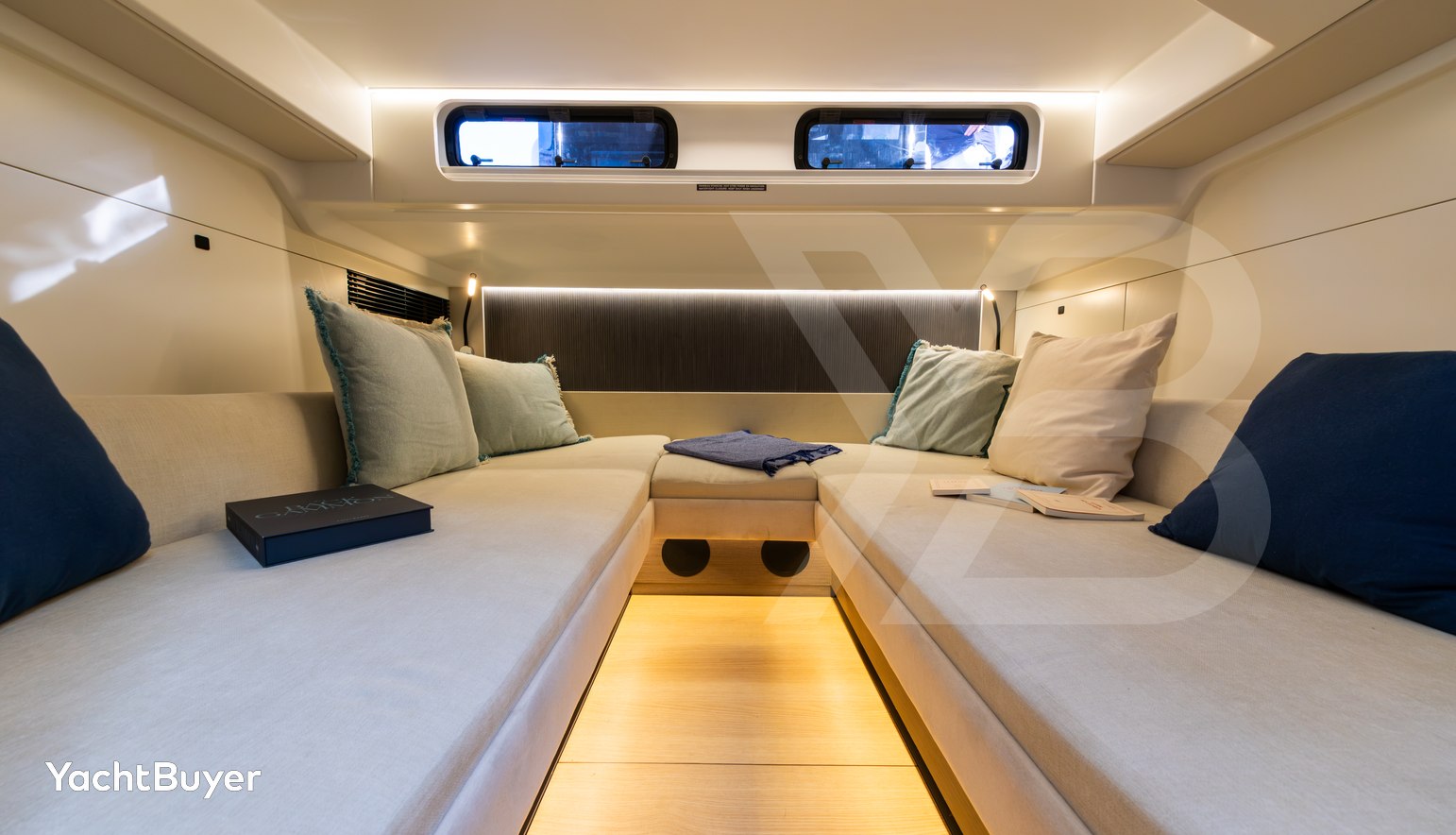

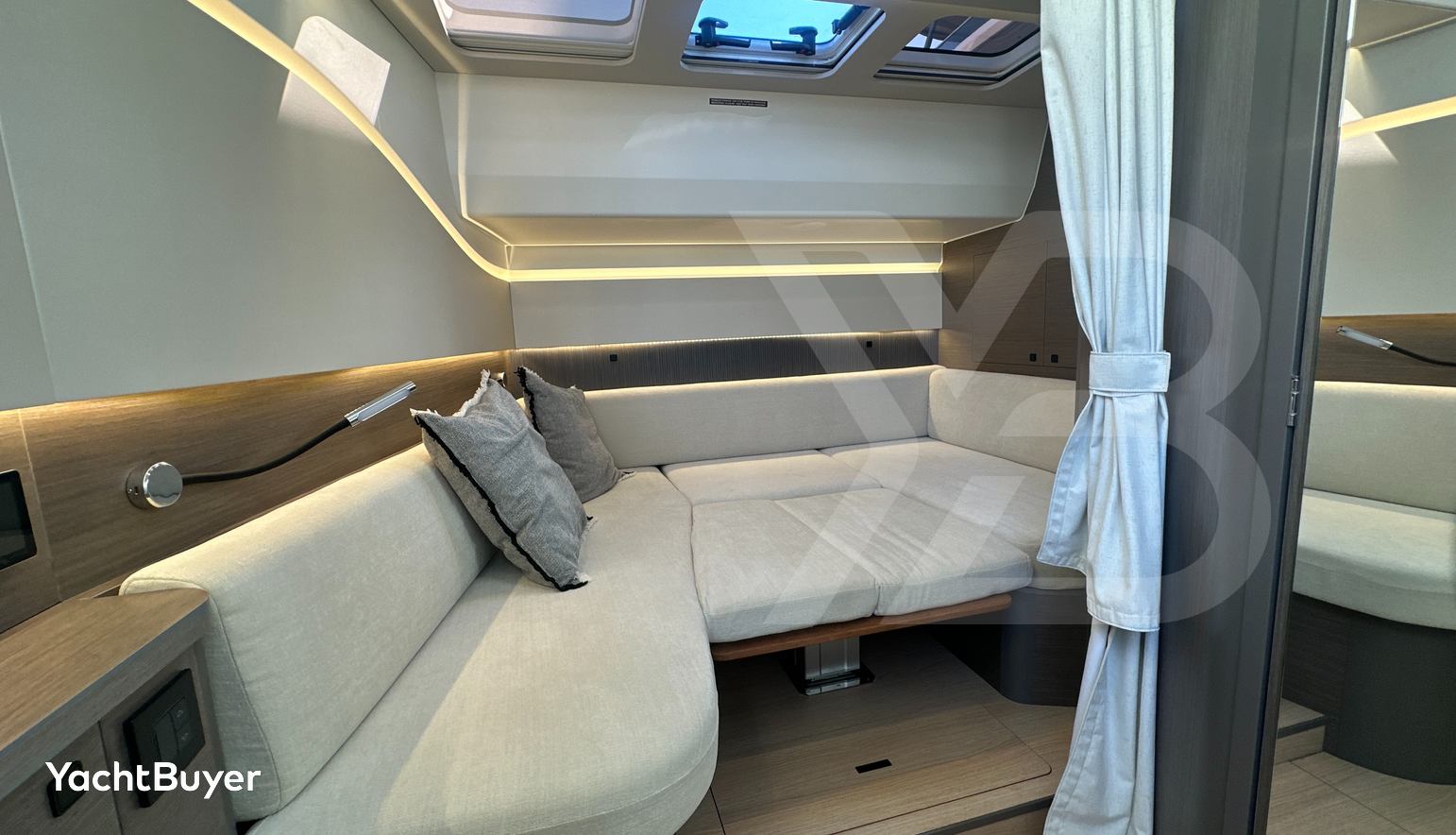

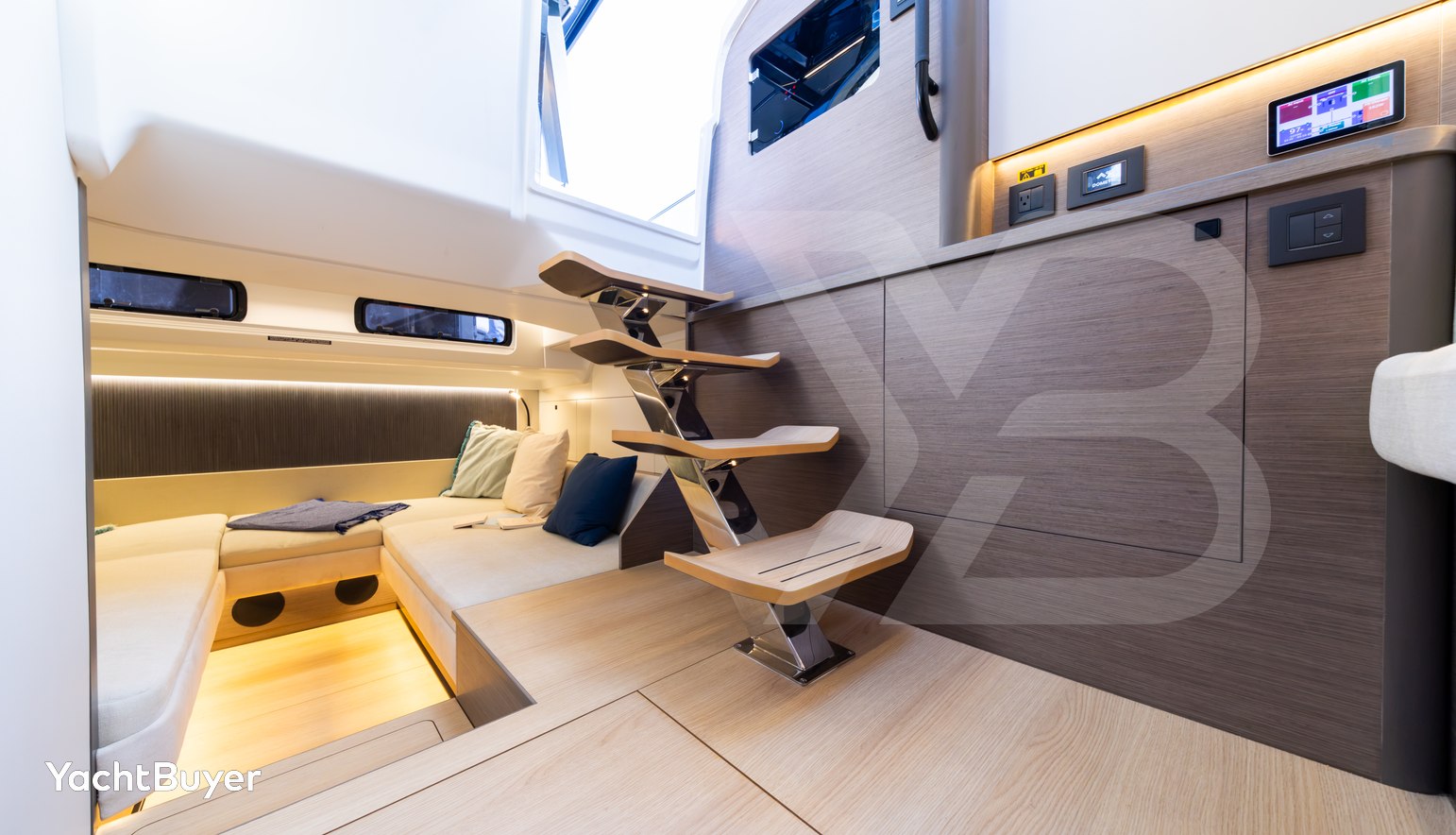

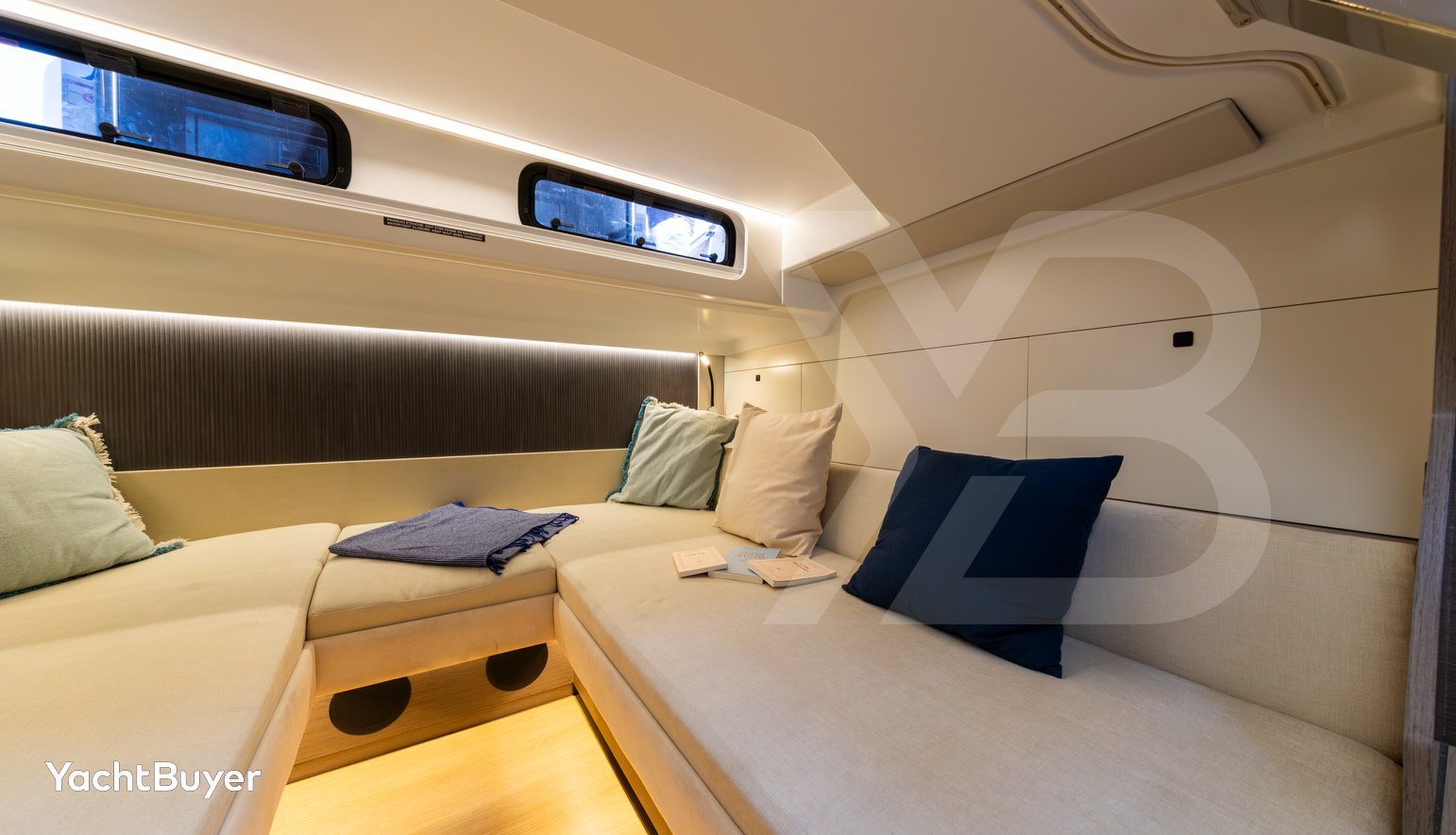

MID CABIN (REAR)
U-shaped lounge area convertible into:
2 single beds or 1 double bed with additional sleeping space
2 reading lights with USBA/C socket
Wooden decor panels with indirect lighting
2 opening portholes with blinds
Direct and indirect lighting
Privacy curtain

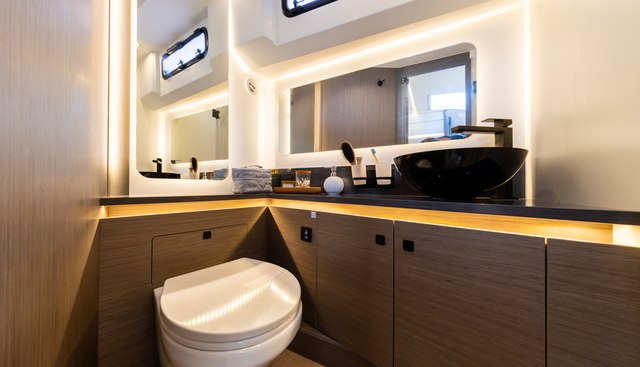

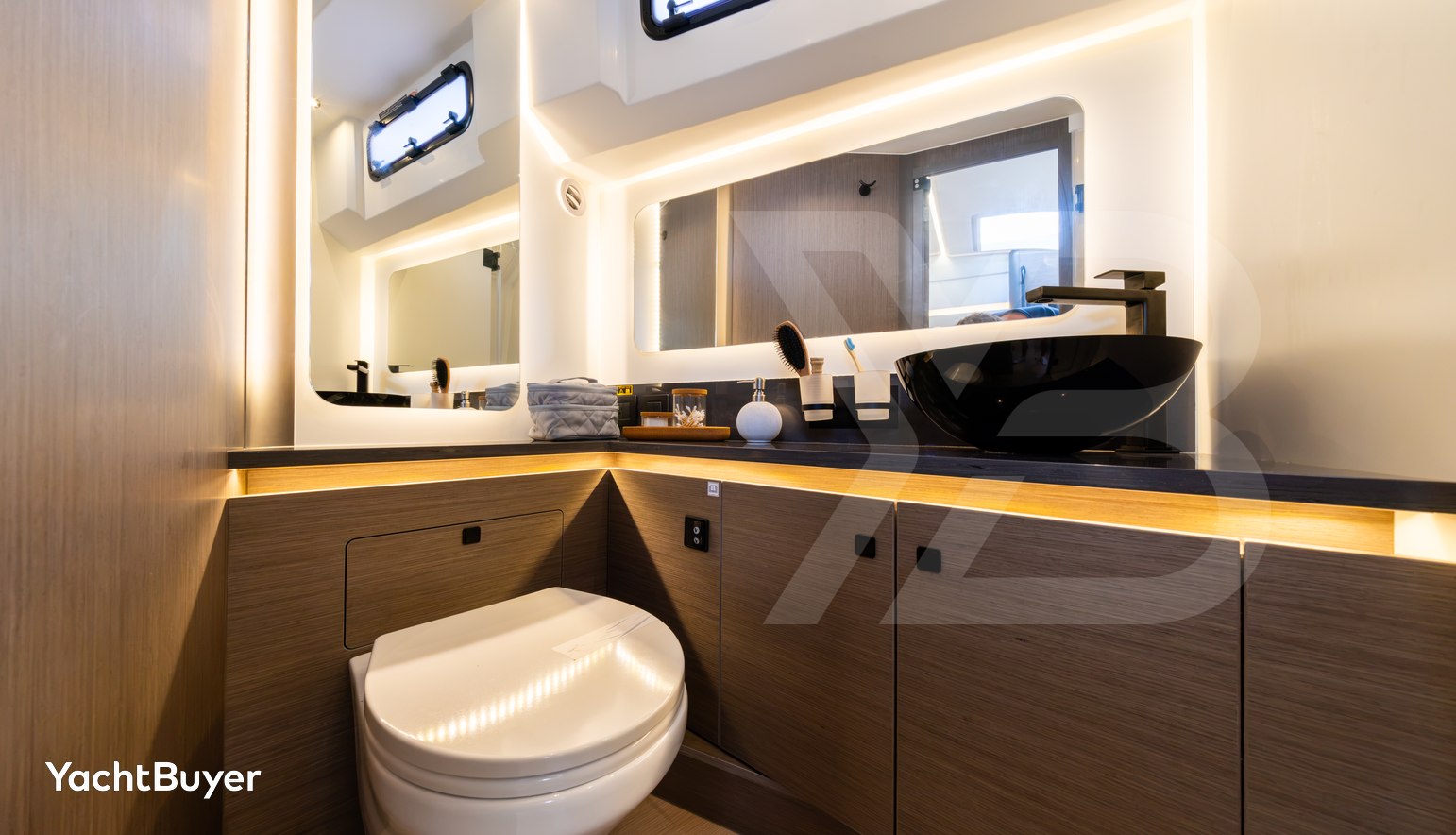

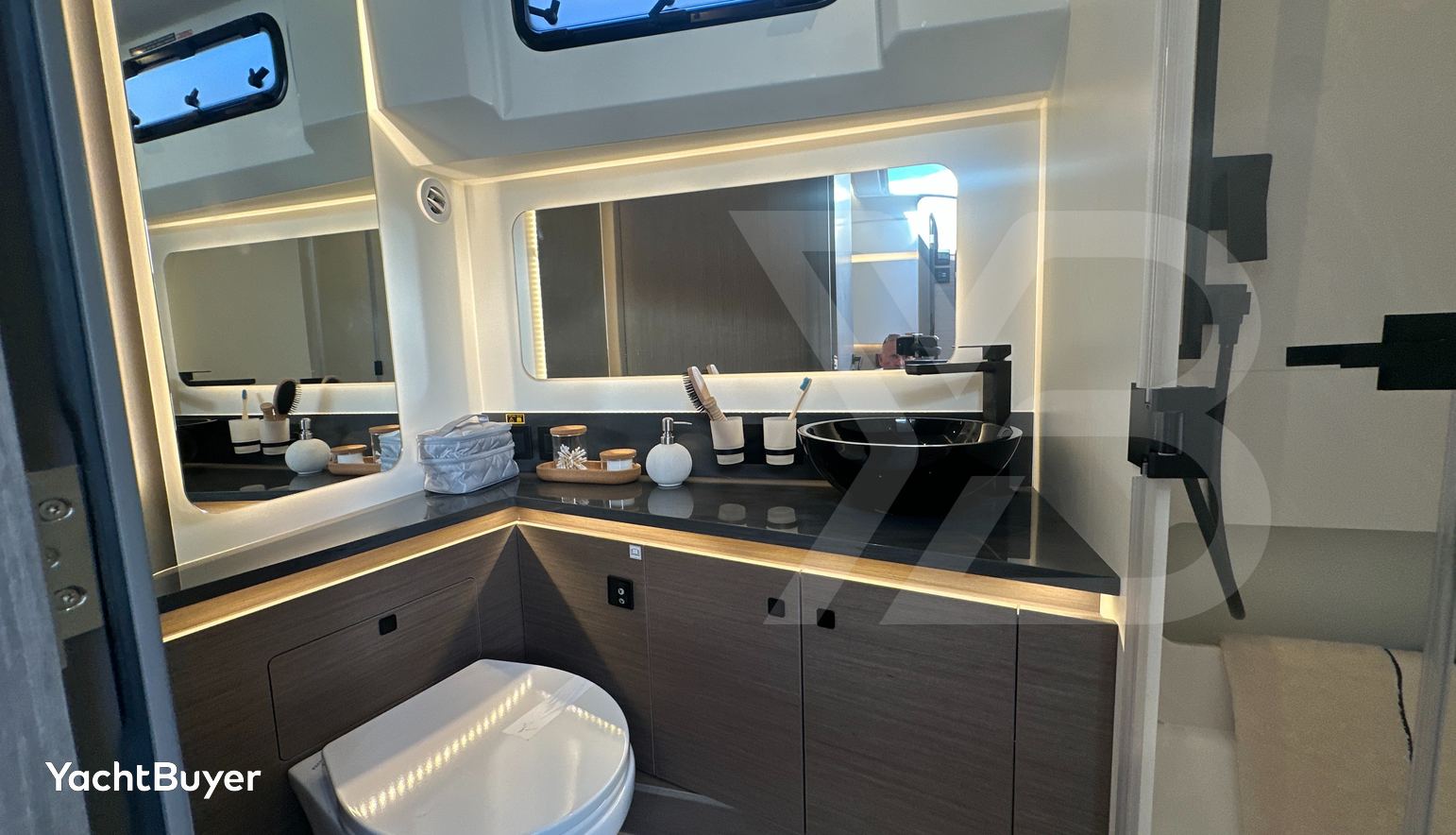

DAY HEAD (STARBOARD)
Basin with mixer tap
Backlit mirror above the basin
1 base unit with shelves
1 opening deck hatch

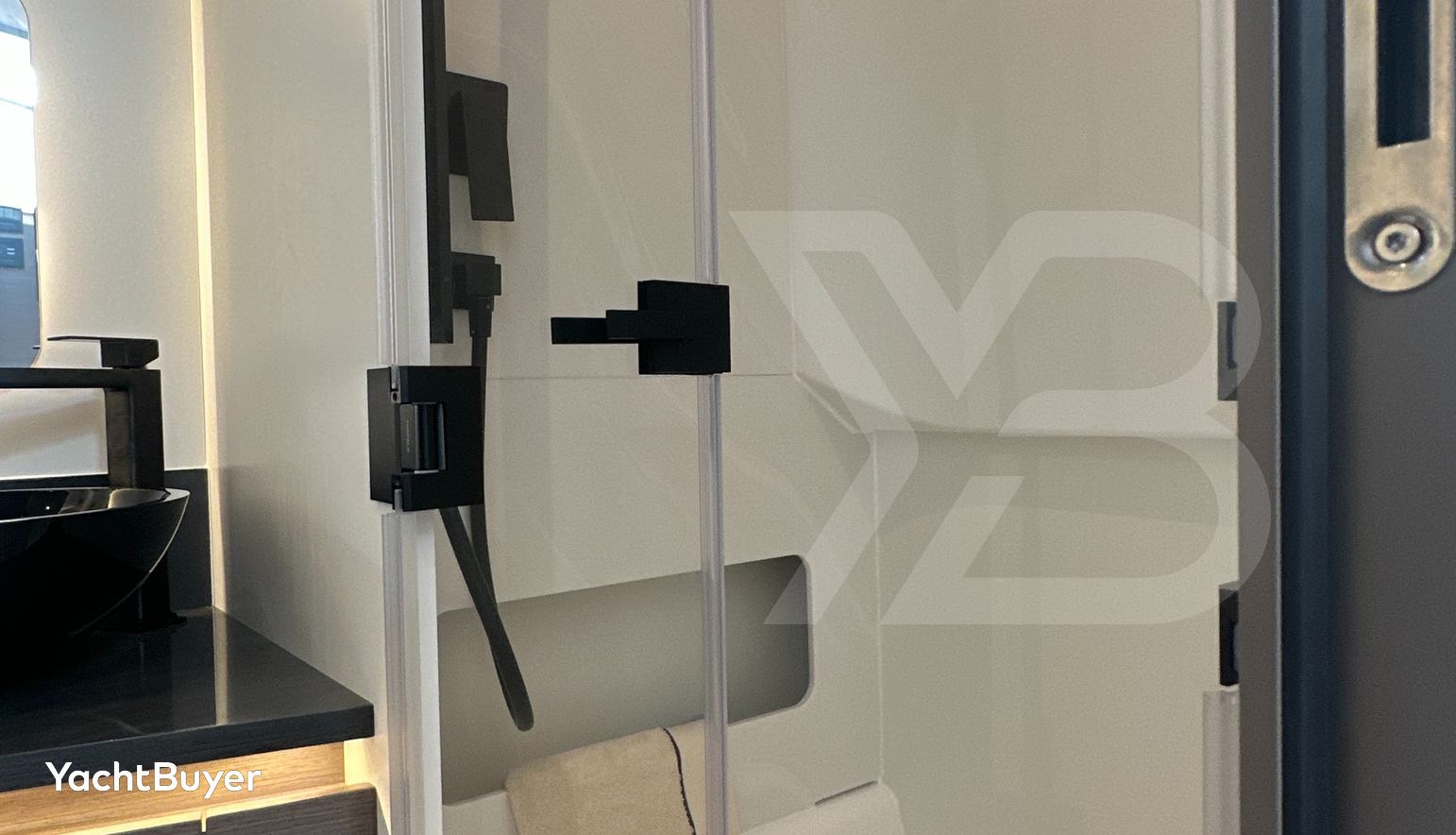

Separate shower with PMMA doors, shower column and storage
Electric toilet
2 glass cup holders
1 coat hook
Direct and indirect lighting

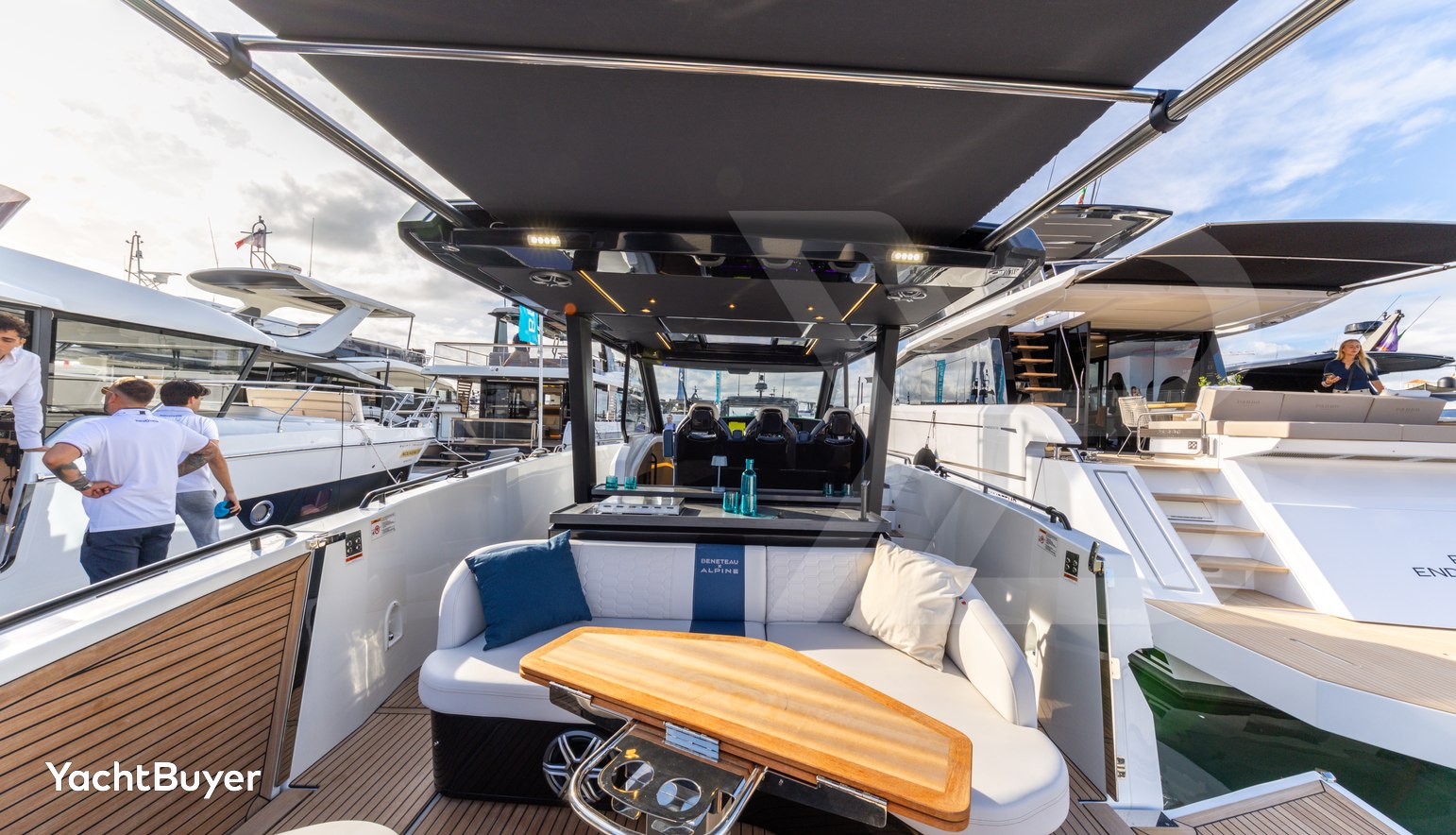

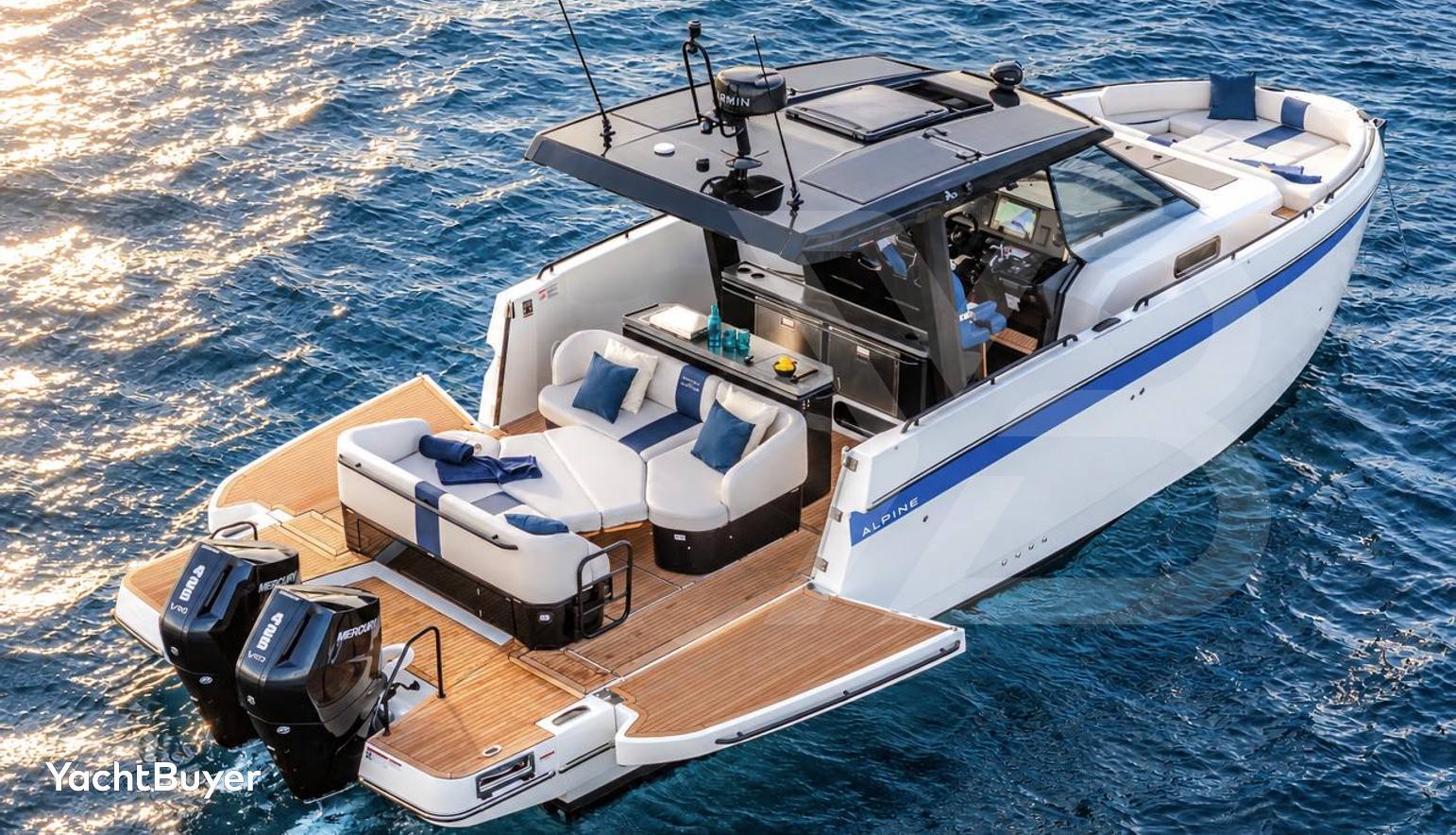

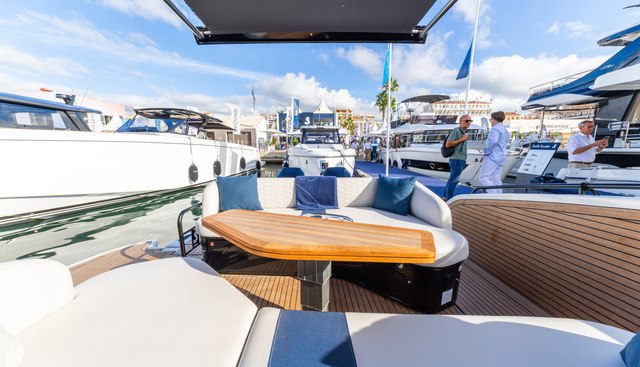

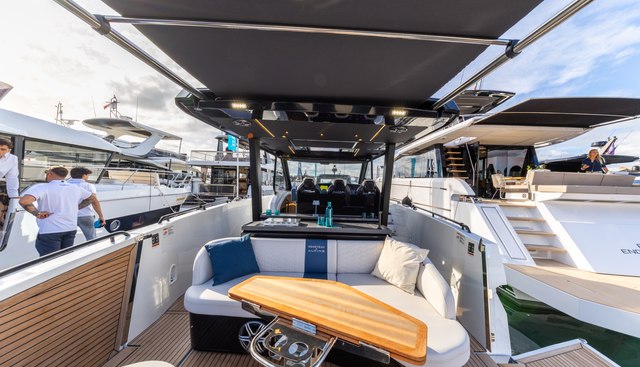

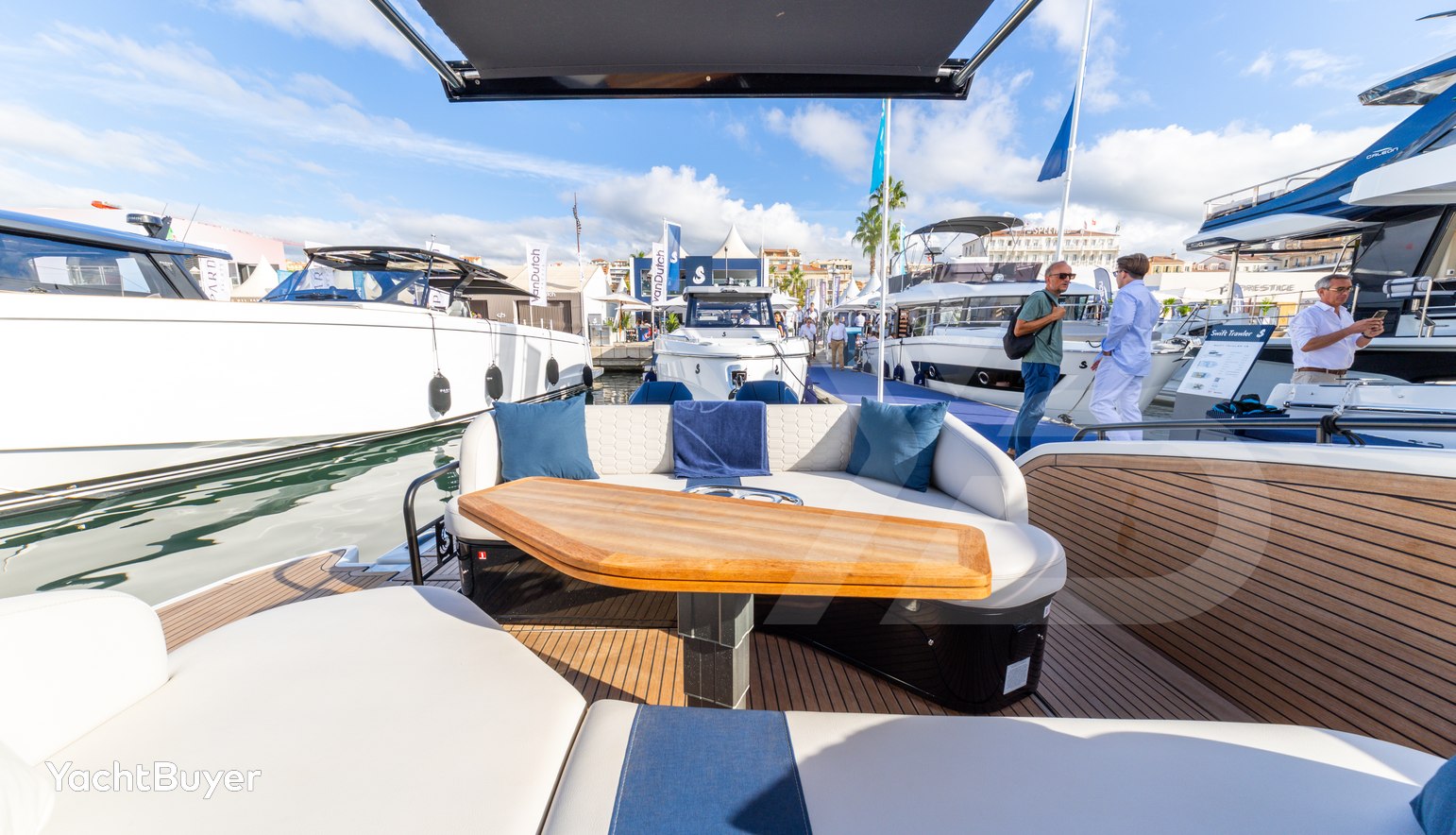

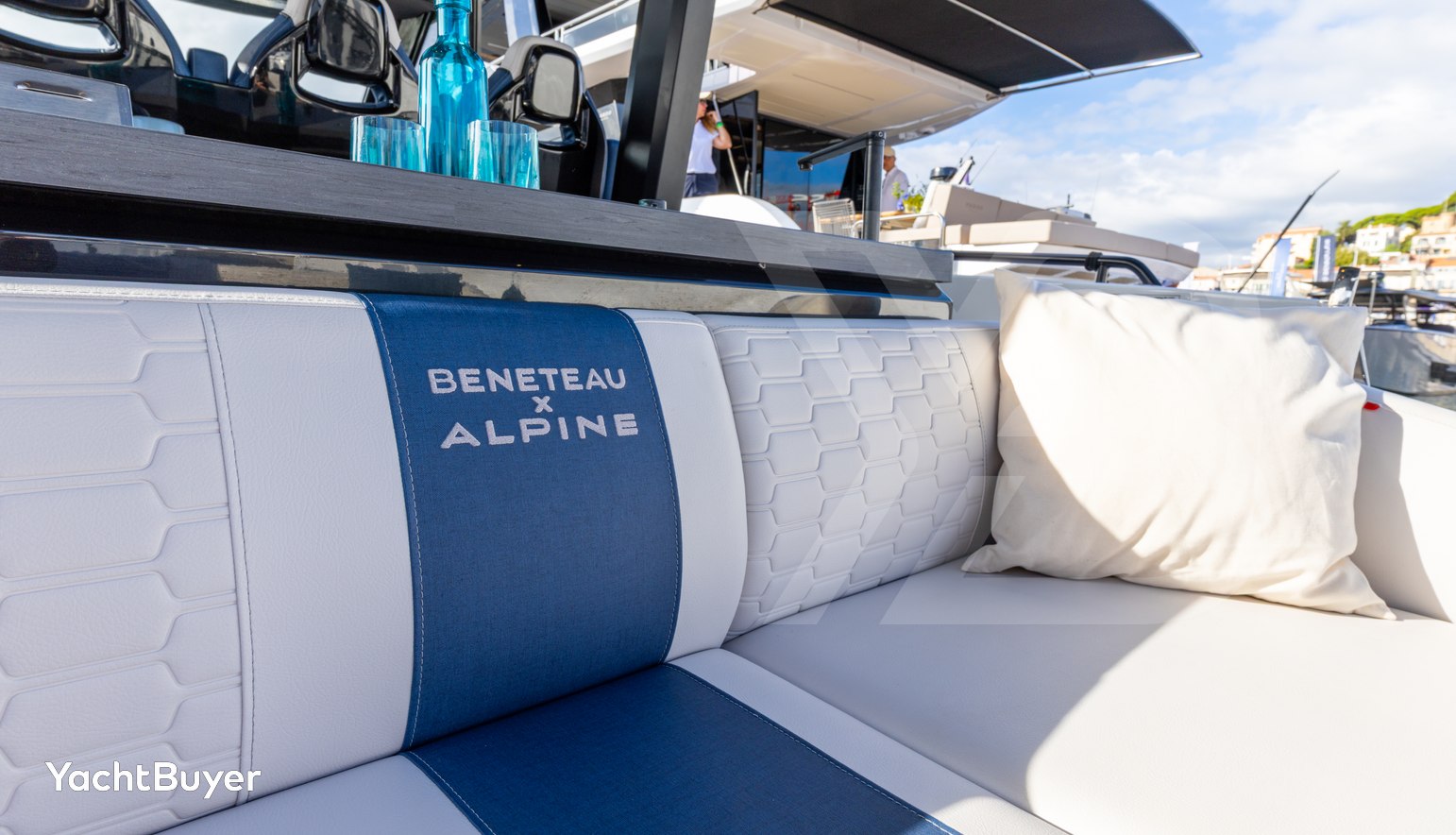

COCKPIT
2 x Aft cockpit bench seating (black gel coat finish)
Solid wood Folding cockpit table (2 positions) with fixed stand, 4 cup holders + 2 handrails
1 storage locker (under bench seating) with space for BIB
Opening hatch for access to engine hold with electric jack
IB version: Fixed bathing platform with stainless steel swim ladder
OB version: 2 fixed bathing platforms with stainless steel swim ladder

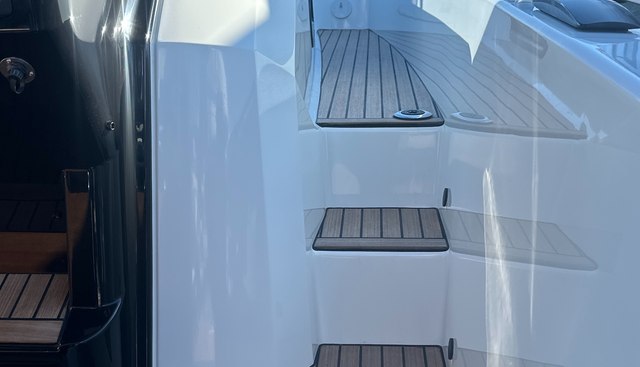

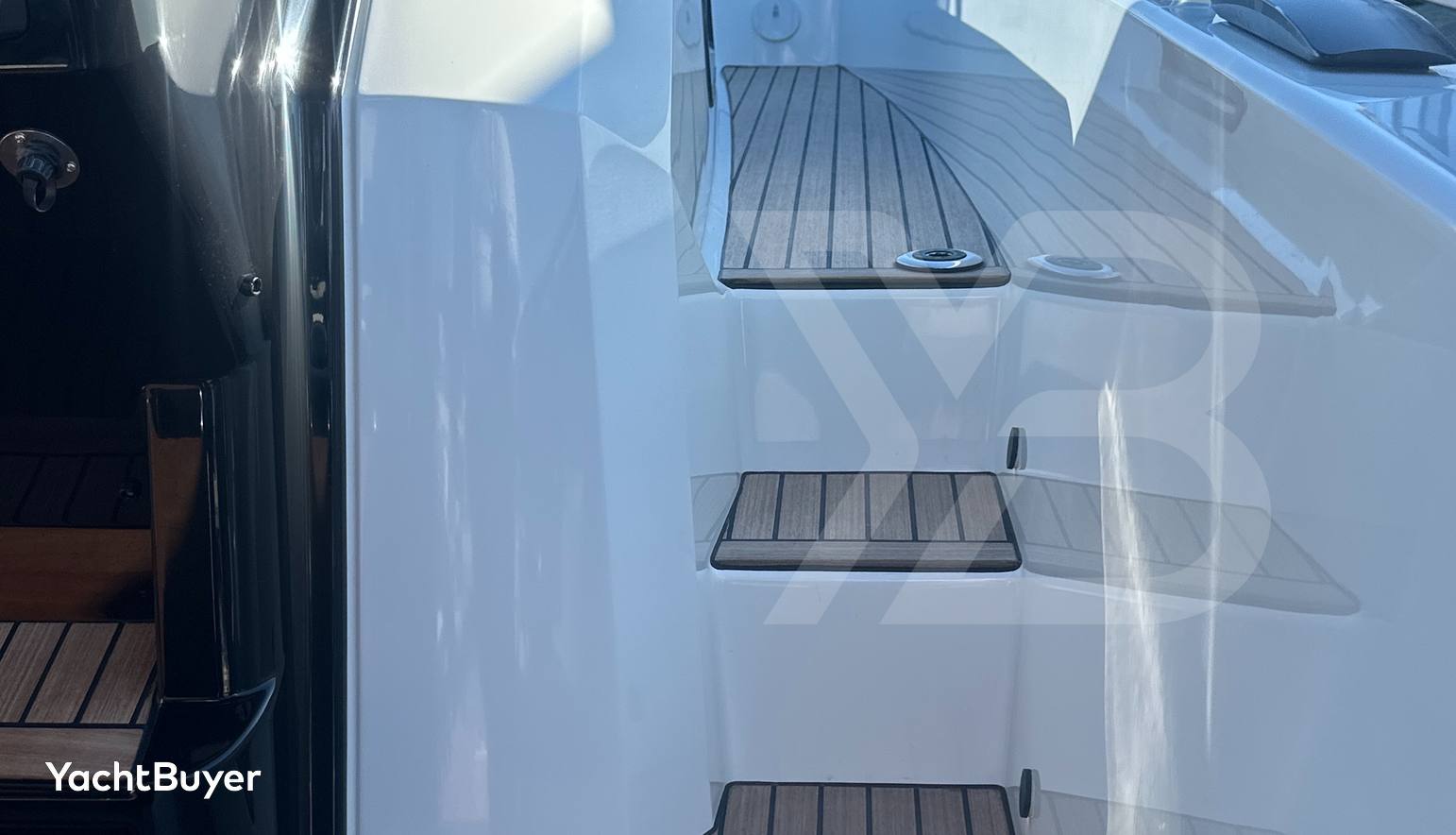

2 slatted side decks with electrically-assisted opening, handrails
2 safety gates

T-TOP
Grey T-Top with manual opening roof
Black radard mount
Black aluminium T-Top strut
LED lighting
Anthracite grey headlining
White Mercury GPS antenna

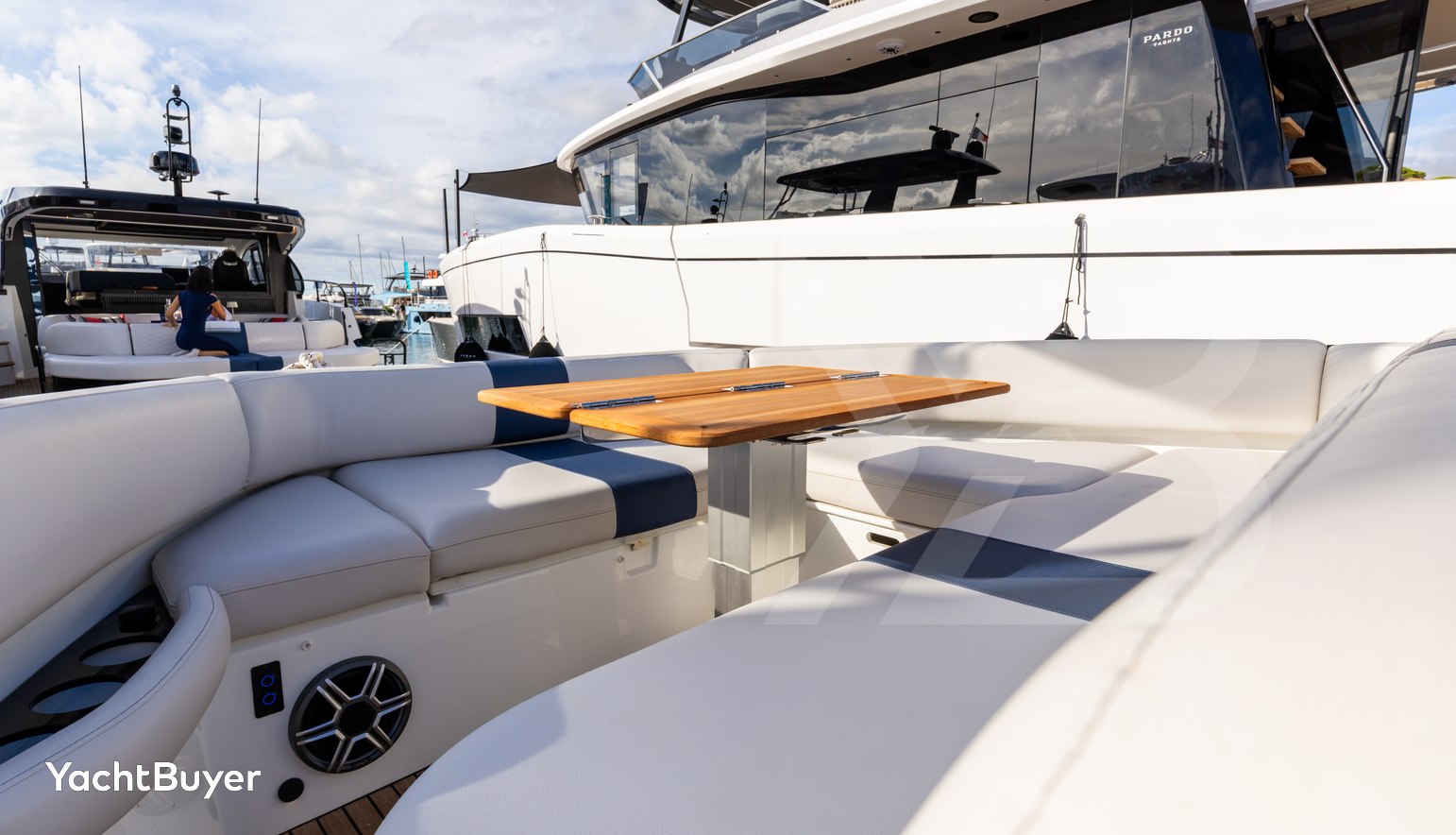

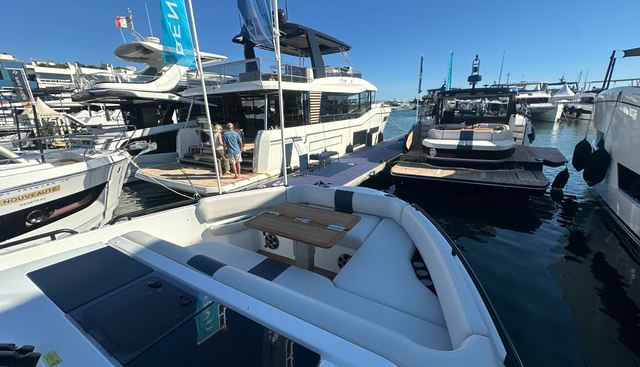

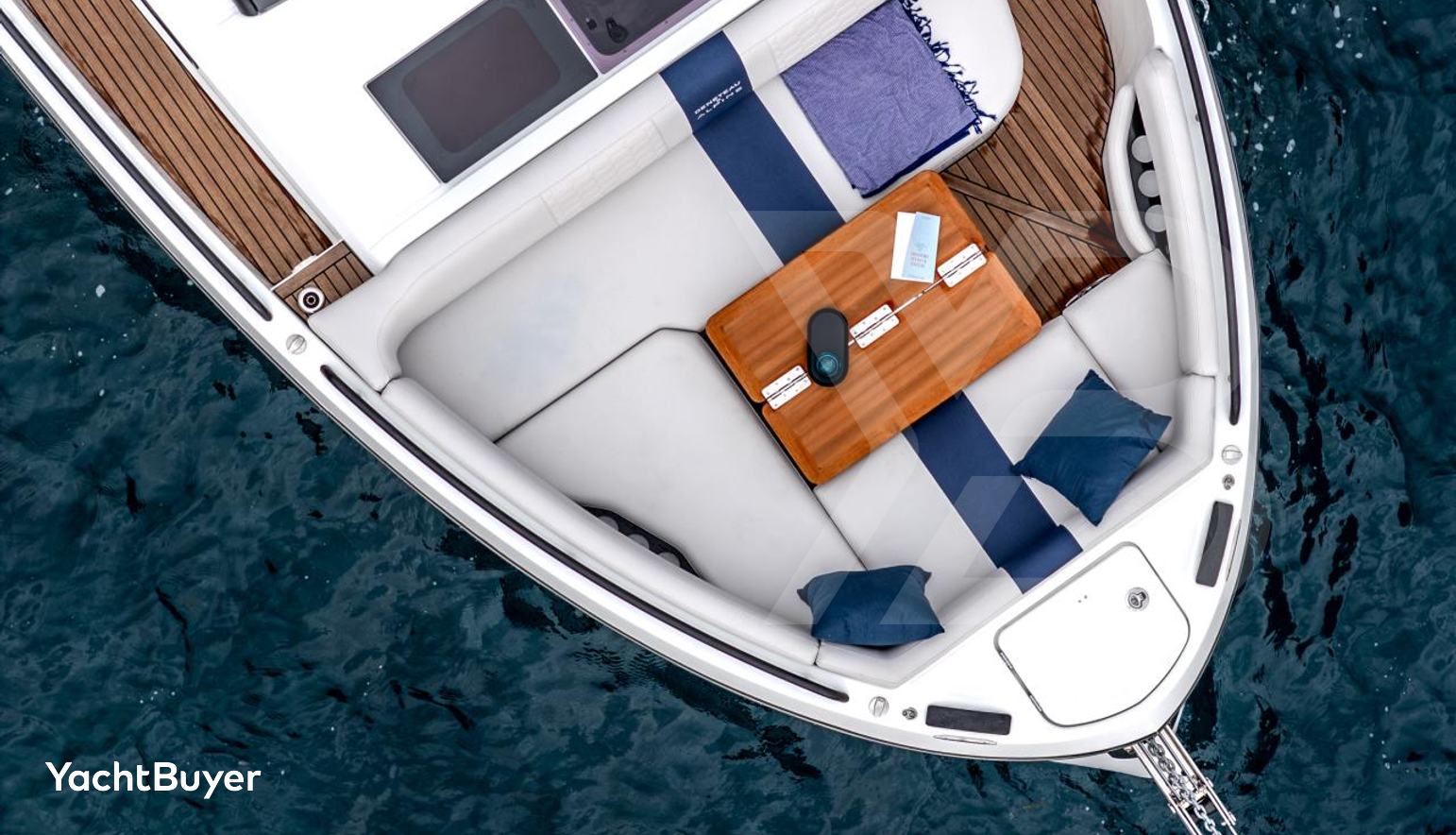

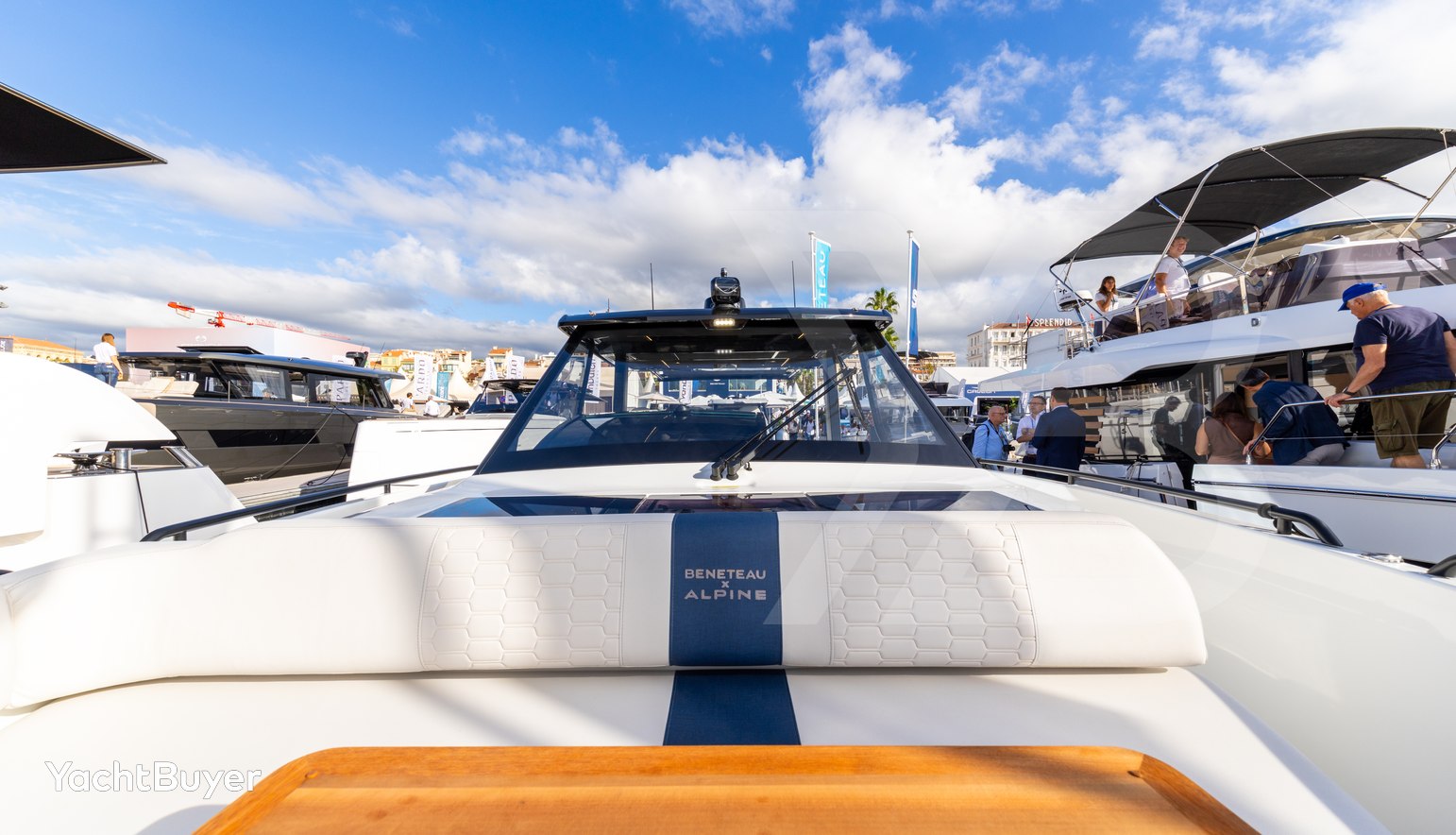

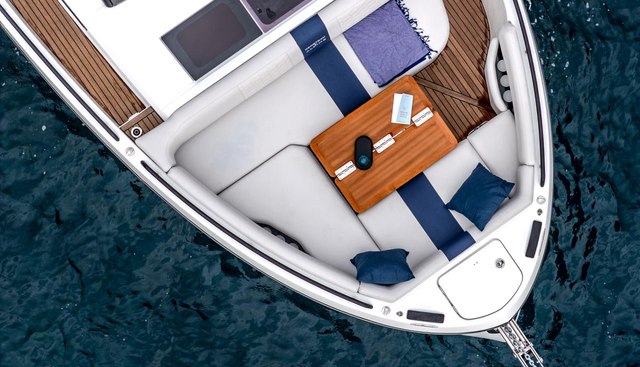

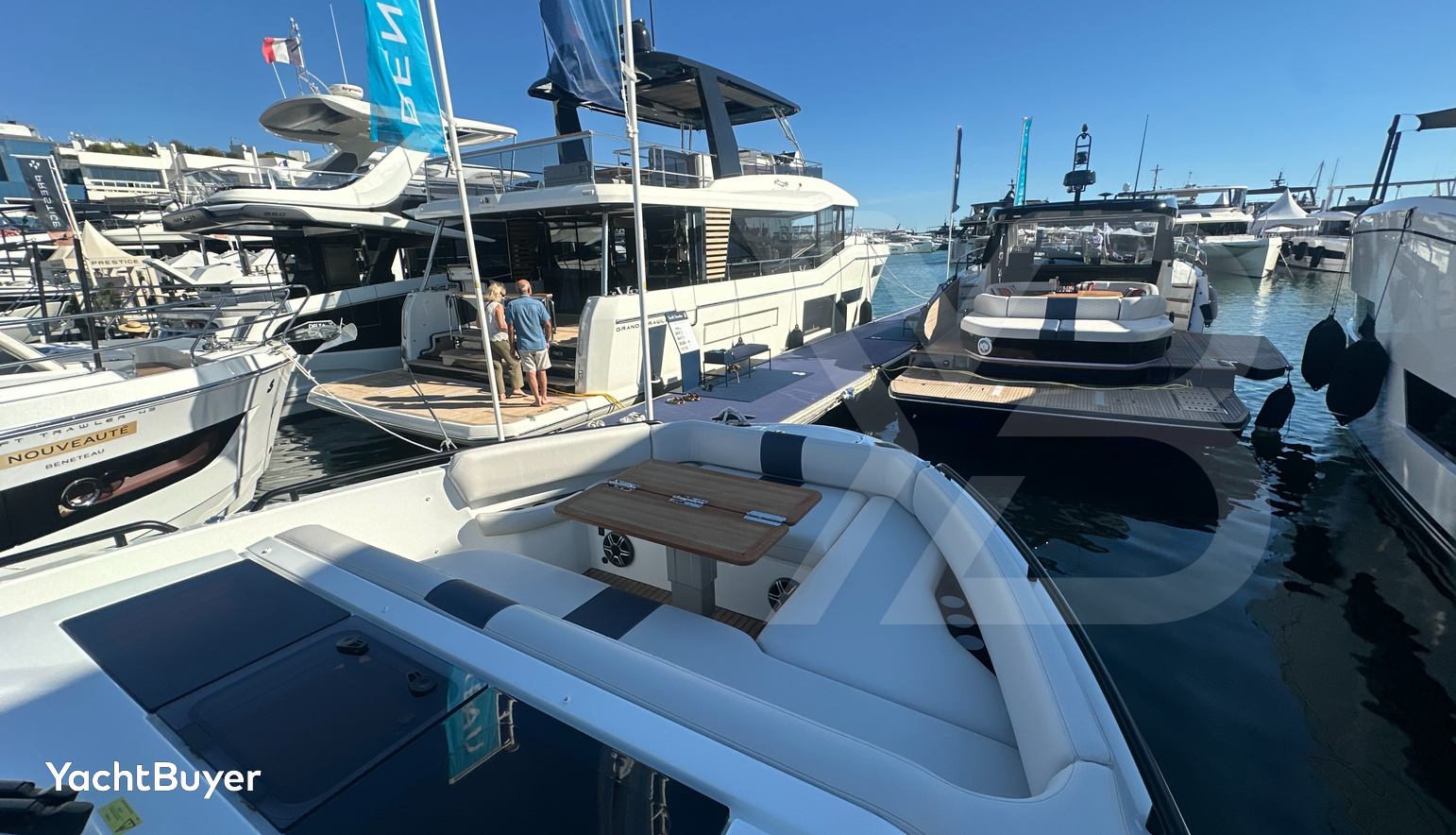

FOREDECK COCKPIT
U-shaped seating area + 6 cup holders
1 storage compartment under seat for access to chain locker
Anchor locker with dedicated space for fenders

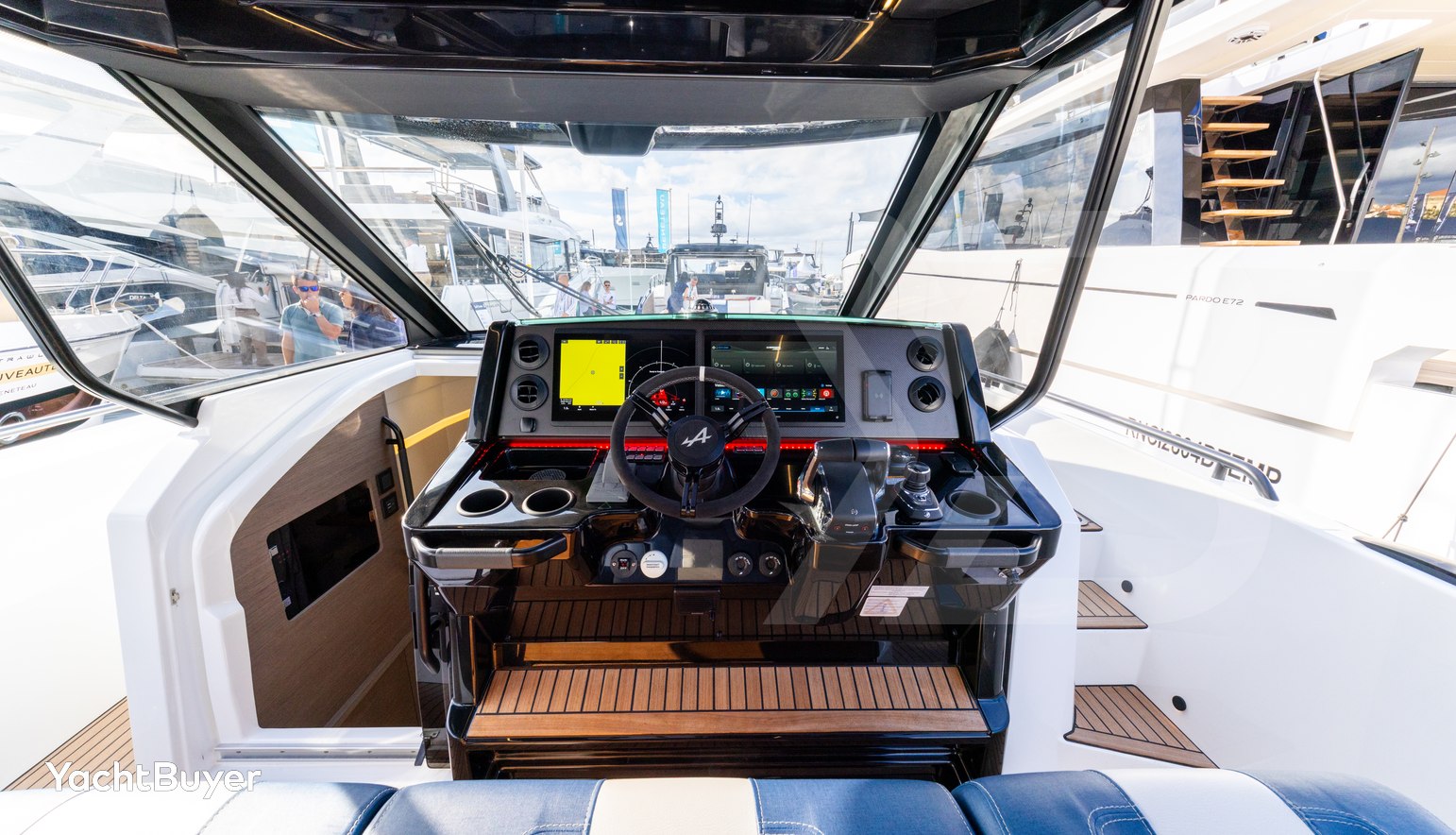

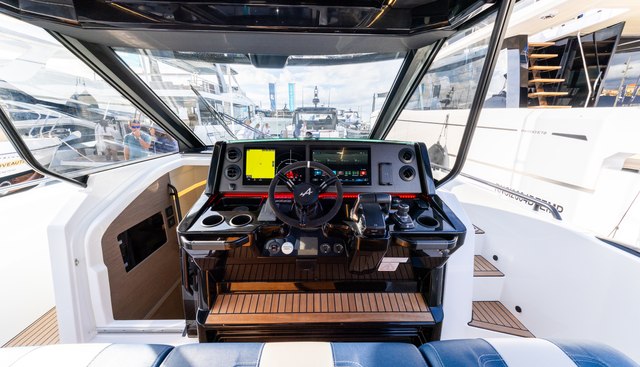

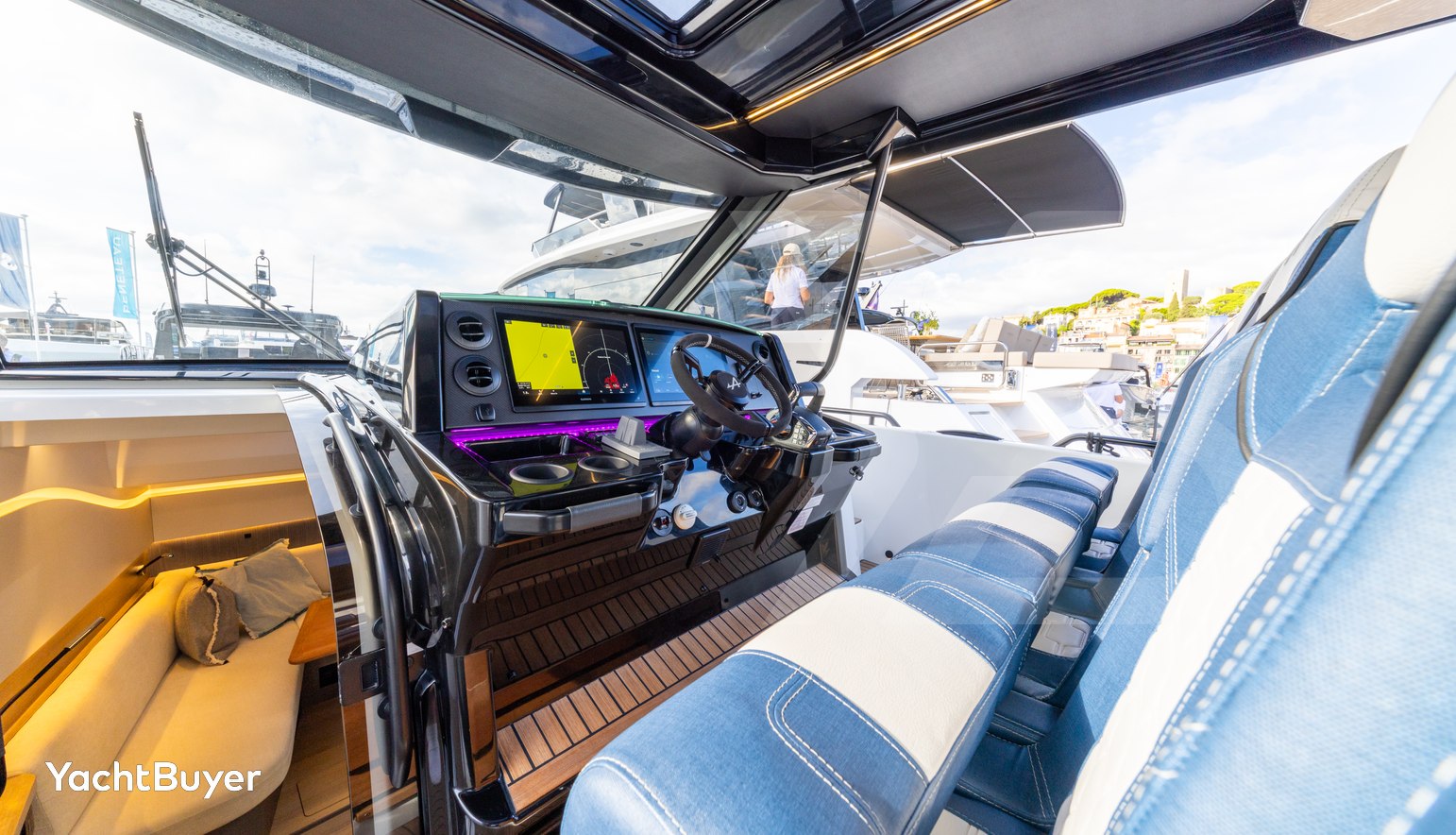

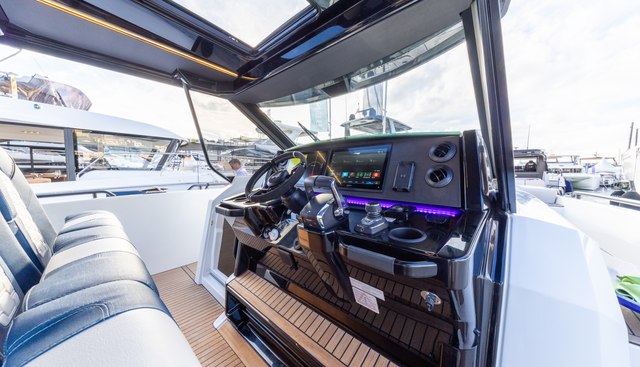

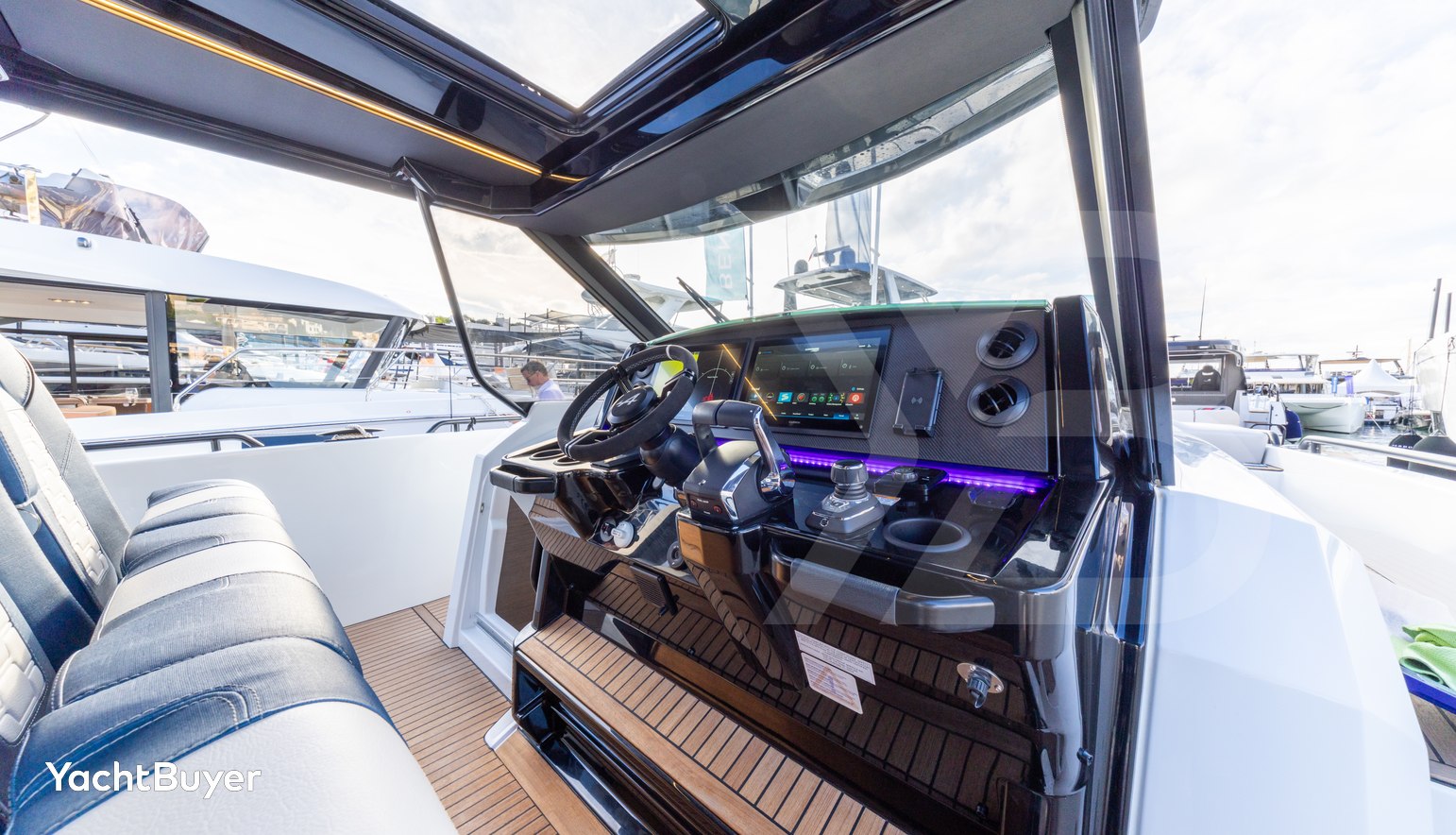

HELM STATION
Helm console with engine controls and joystick, 2 handrails, compass,
USB/C socket, 3 cup holders and storage compartment
Black PMMA console panel
Glass windscreen with 1 integrated electric windscreen wiper
Side windows with black frames
3 seats fixed driver's bench with bolster function matching exterior upholstery

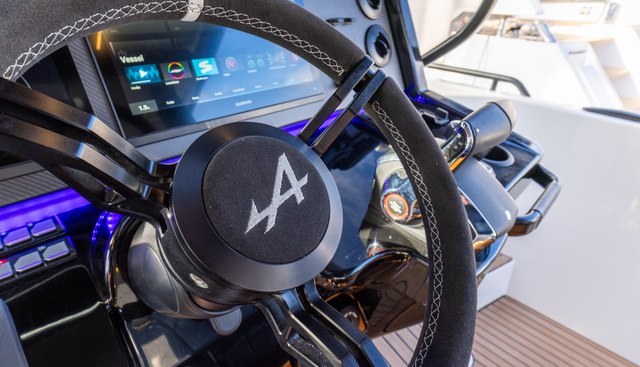

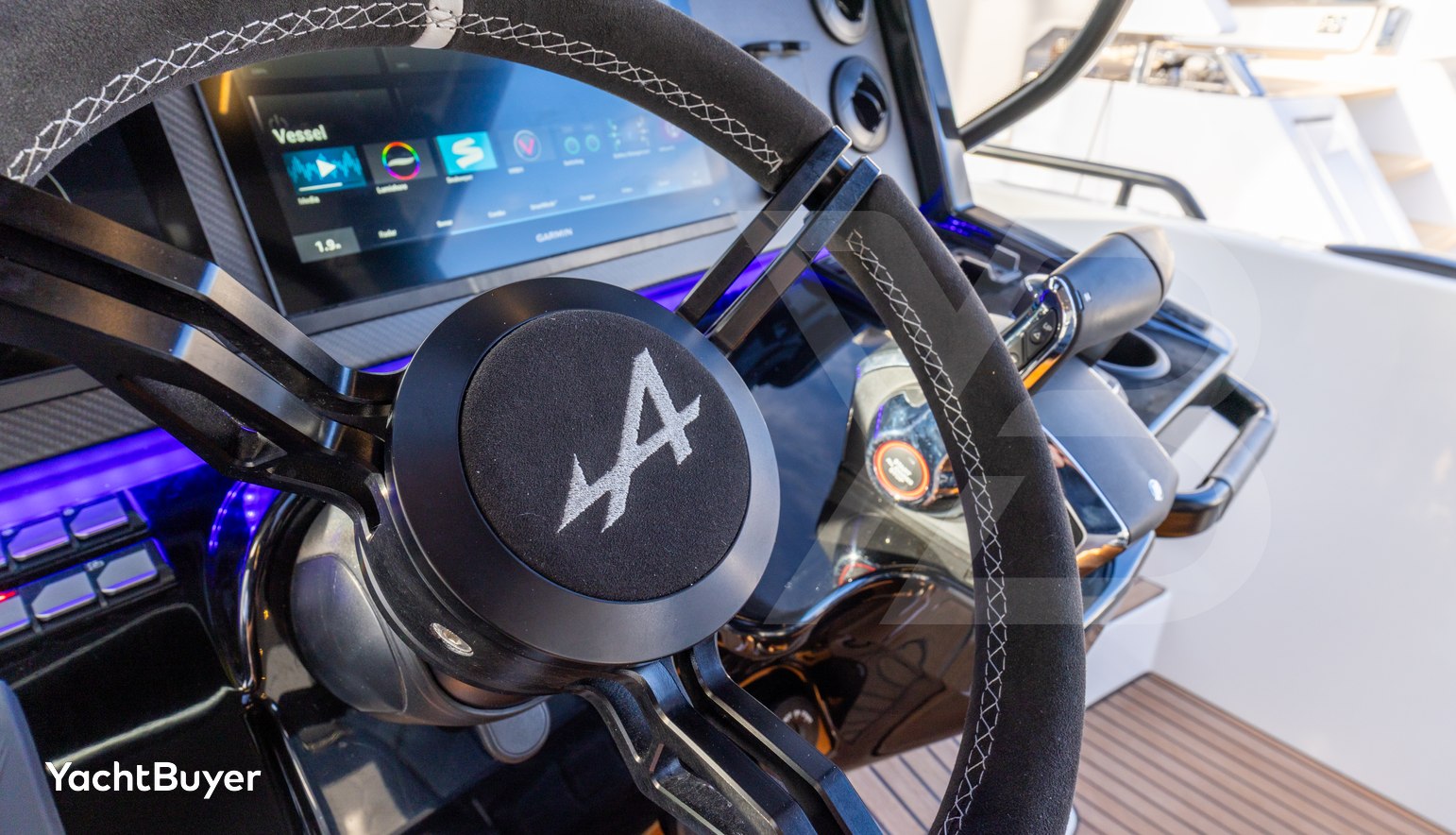

Leather steering wheel
Footrest in front of pilot seat
Wood pedestal
Anti-reflective under windscreen in carbon-coloured PVC
1 Yanmar screen (IB version)
1 induction phone charger
Horn
PMMA sliding door
Access to lower deck with handrail

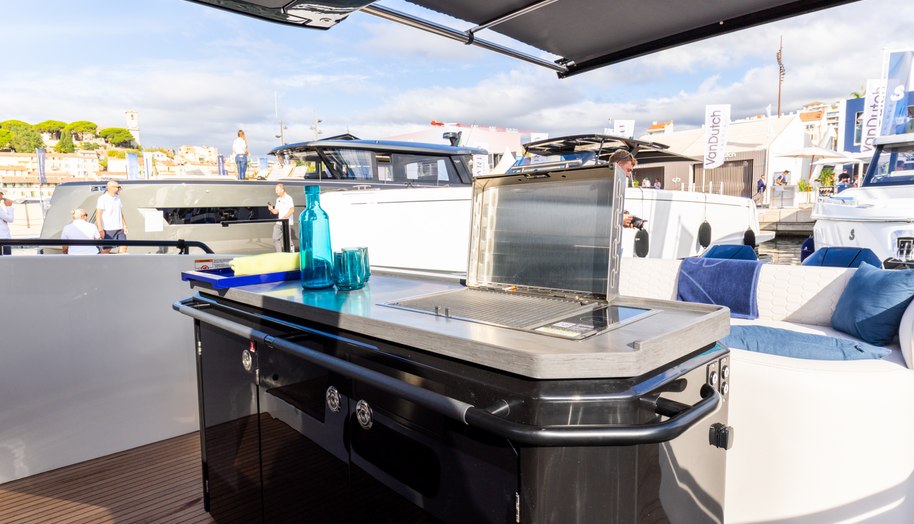

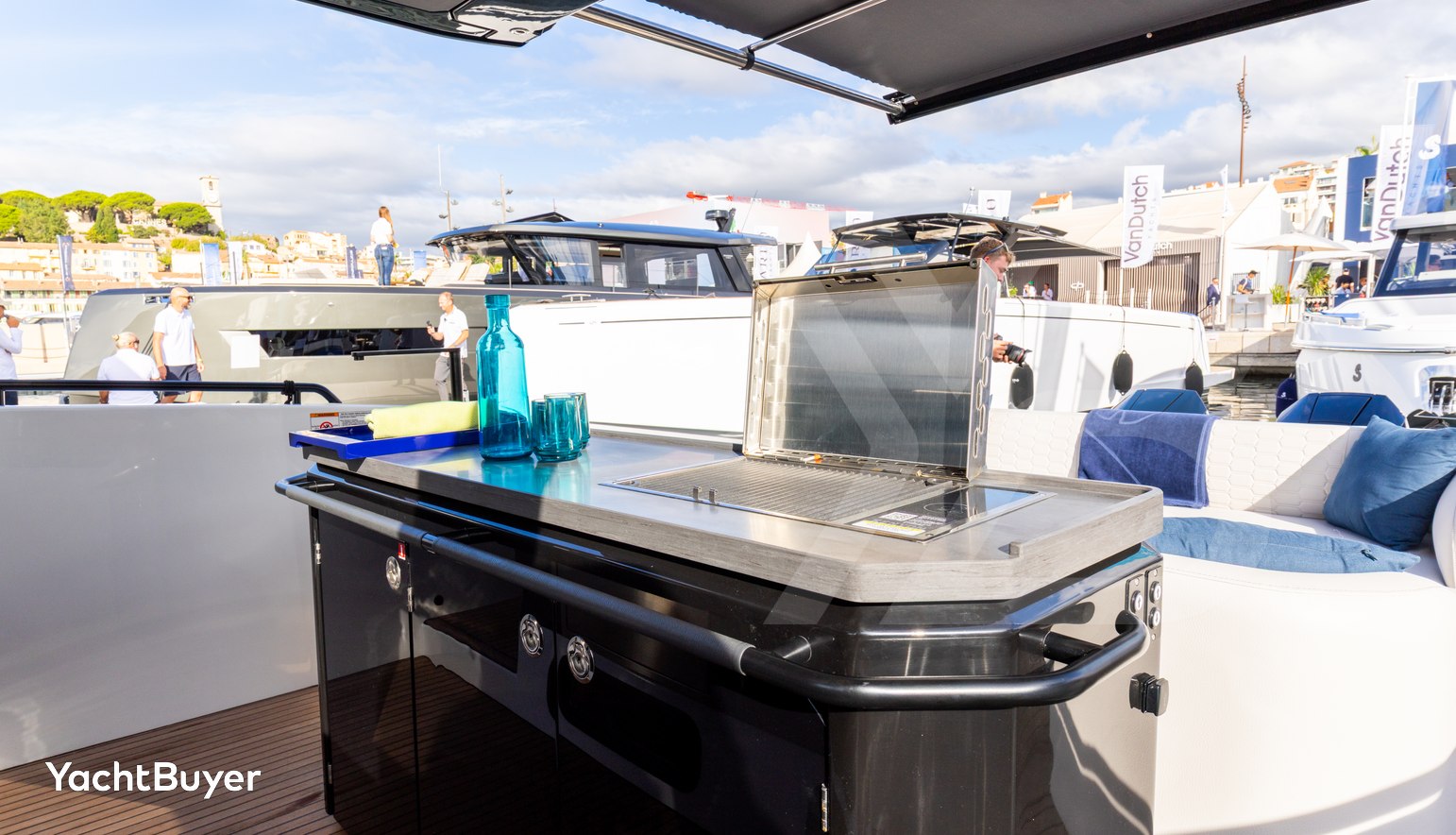

EXTERIOR GALLEY
Stainless steel sink with retractable mixer tap
White Corian worktop
2 x 75L drawer refrigerators
3 Drawers and 1 shelf
Waste bin
Waterproof socket
2 USB A/C sockets
Leather handrails

Build & construction

BRAND NEW BENETEAU GT40 OPEN
Designed by Michael Peters and Andreani Design

CONSTRUCTION
• Hull (contact process) white - reverse bow
• Composition: Sandwich (Vinylester resin - Glass fibre - Balsa core)
• Contact process hull with counter mould
• Contact process deck with counter mould
• Iroko to cockpit and side decks


MAIN SPECIFICATIONS
Length Overall inc anchor and INBOARD engines - 12.3m (40’4”)
Length Overall inc anchor and OUTBOARD engines - 12.58m (41’3”)
Hull Length (Inboards) 10.86m (35’8”)
Overall Beam 3.7m (12’2”)
Overall Beam + open side terraces 5.32m (17’5”)
Water Draft (full load) 1.15m (3’9”)
Air Draft (included radar support, light load) 3.97m (13’0”)
Light Displacement inboards 9041kg ~ Outboards 8755kg
Berths 4
EC Certification B8, C10, D10

Inventory

MOORING ANCHORING
Telescopic bow fating
Electric windless (with remote contrel), 1000 W
2 retractable cleats forward, 2 in the center and 2 aft in aluminium/titarium

ELECTRICITY
Space for 2 AGM engine batteries (12 V - 120 Ah) + 3 AGM service batteries (12 V - 140 Ah) (not supplied)
2 fire extinguishers
Battery charger (12V - 100Ah)
22Q V interior sockets
Shore power socket (220 V - 32Ah)
LED spotlights and reading lights.
Manual shore power extension lead (15 m)

PLUMBING
Fresh water tank (1 x 255 L / 67 US Gal)
Rigid black water tank (80 L / 21 US Gal)
Grey water tank (7 L / 2 US Gal) with automatic discharge
Stainless steel water filler
Water generator for pressurising the hot/cold water system
Water heater 25 L /7 US Gal
Deck wash pump for mooring (in anchor locker)
Cockpit shower with mixer tap
2 Bilge pumps:
1 Electric bilge pump on transom (90 L/ 24 US Gal /minute)
1 Manual bilge pump under port side catwalk (30 L / 8 US Gal /minute)

MISCELLANEOUS ITEMS
Smoke detector, carbon monoxide

PACKS

PREMIUM ELECTRONIC
Additional Garmin 16" MFD
Garmin GC245 rear camera
Garmin AIS 800 Receiver
Garmin VHF

AFT CABIN ENTERTAINMENT
Fusion Apollo RA210
4 speakers (6'5")
TV prewire for 32" TV
TV antenna

LOUNGE TRIM PACK
Deck wash pump (aft cockpit)
Dock water inlet
Pre-wiring air conditioning
16" Garmin MDF with depth sounder
White plisse blinds in cabins
12V 2KVA inverter
Deck searchlights
Battery charge indicator
LED aft docking lights
Slatted bed base (mid cabin)
Microwave
Cockpit grill
Electric sunroof in hardtop
Fridge/Freezer replacing standard fridge

Machinery

ENGINES
2 x YANMAR 8LV Z-Drive 370 HP + Joystick (Standard)
Electronic engine controls
Fuel filter with decanter
Seawater filter integrated into engine
Air intakes on hull for engine hold cooling
Engine room insulated with soundproofing foam
Stainless steel fuel lines
Electric power steering
Yanmar version:
2 rotomoulded fuel tanks capacity of 2 x 445L

TANKAGE
Freshwater tank – 255L (67 US gal)
Rigid blackwater tank – 80L (21 US gal)
Grey water tank – 7L (2 US gal) with automatic discharge
Stainless steel water filler
Pressurised hot/cold water system
Water heater – 25L (7 US gal)
Deck wash pump (anchor locker)


BOWTHRUSTER

BILGE PUMPS
1 Electric bilge pump on transom (90 L/ 24 US Gal /minute)
1 Manual bilge pump under port side catwalk (30 L / 8 US Gal /minute)
