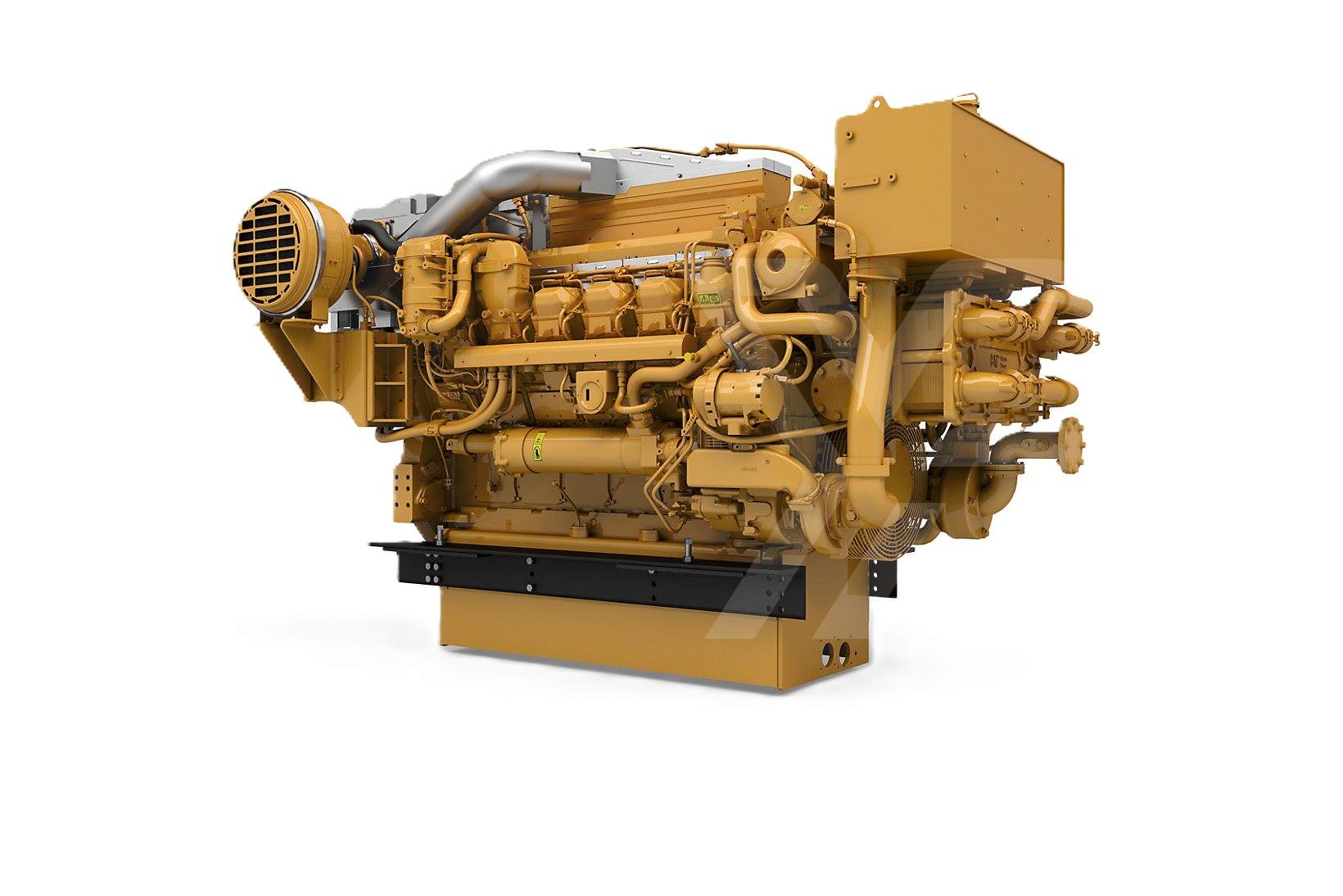

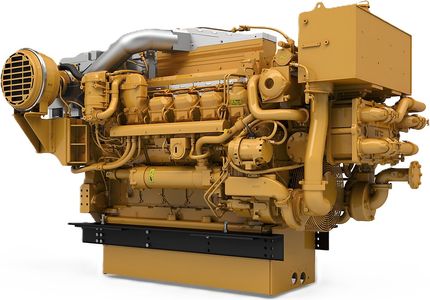

Caterpillar C3512E IMO TIER III
Key Specifications
-
RATED OUTPUT:1,810 bhp / 1,350 KW / 1,835 mhp
-
RATED SPEED:Max 1,800 rpm
-
DISPLACEMENT:58.6 Litres
-
CYLINDERS:V12
-
BORE & STROKE170mm bore , 215mm stroke
-
TYPE:3
-
EMISSION COMPLIANCE:-
C3512E IMO TIER III Full Specfications
Engine
-
Model Name:C3512E IMO TIER III
-
Range:-
-
Manufacturer:Caterpillar
Engine description
-
No' of Cylinders:12
-
Flywheel housing:SAE 00
-
Cooling system:Water
Performance data
-
Bore170mm .
-
Stroke215mm .
-
Rotation:CW
Exhaust
-
Optimization of exhaust emissions:IMO Tier II
Dimensions
-
Height:2,334mm .
-
Width:2,036mm .
-
Length without gearbox:3,136mm .
-
Length with gearbox:3,184mm .
-
Total displacement:59 Litres
-
Mass5,817kg
Other
-
In production?Yes
