Outer Reef 27 YXT Yacht

The 27 YXT is the entry-level expedition yacht from American builder Outer Reef Yachts' ASV Series range. The 27 YXT is a yacht built from steel, the fast displacement hull design will reach a top speed of 14 knots.

89' 11"
  • Crew

    4 Max

From The Manufacturer

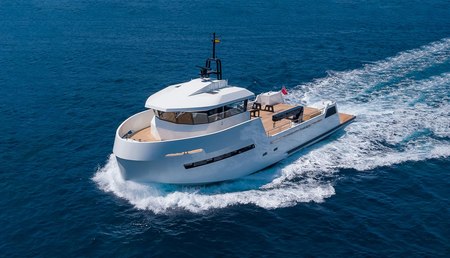

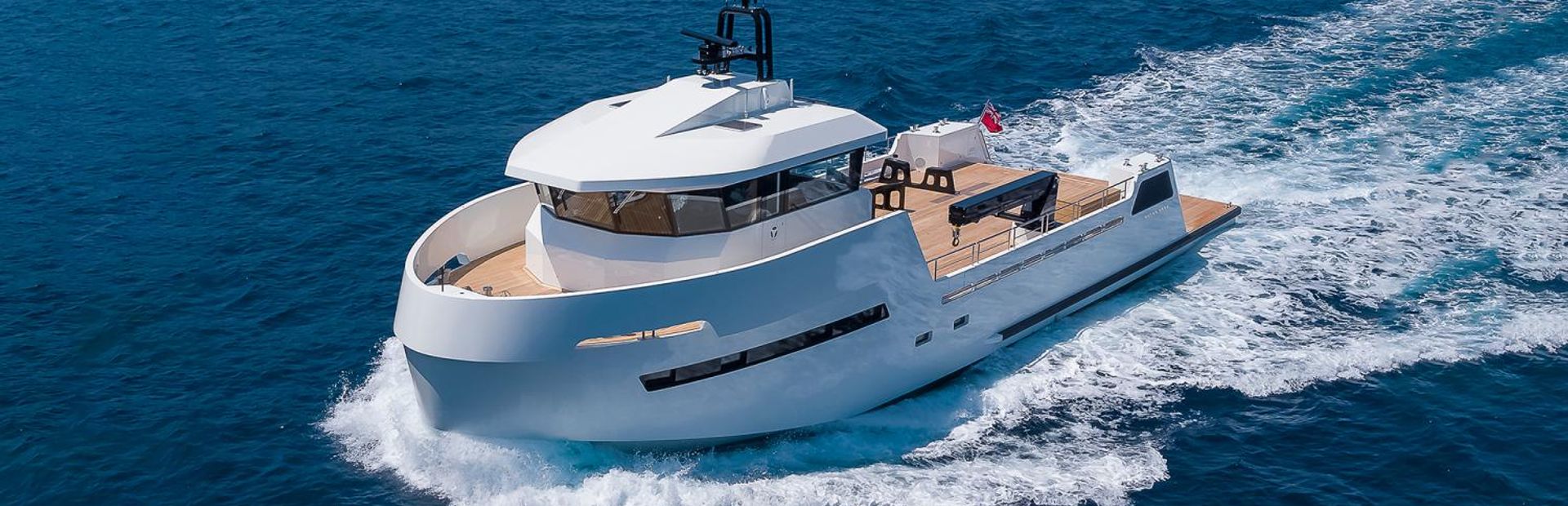

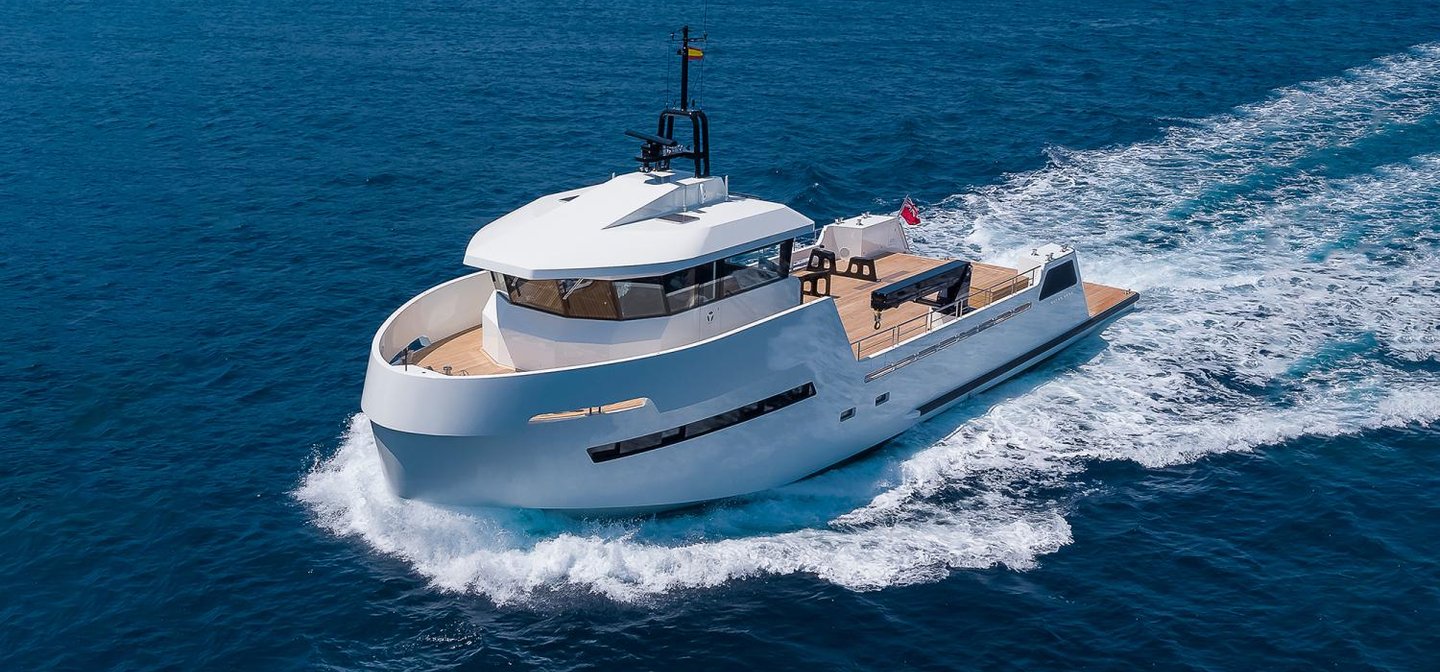

The Outer Reef 27 YXT is a 27-meter, shallow-draft, fast displacement platform built for global exploration, total customization, and rugged performance. Purpose-built to serve as either a stand-alone expedition yacht or a dedicated shadow vessel, it offers owners an unmatched blend of utility, style, and seaworthiness. Backed by expert Dutch naval architecture and engineering, it confidently handles open-water crossings while accommodating an extraordinary range of mission-specific gear.

With expansive deck space designed to transport submarines, helicopters, chase boats, adventure RIBs, sailboats, PWCs, diving gear, ROVs, landing craft, and even all-terrain vehicles, the 27 YXT adapts to each owner's unique operational vision.

Specs

  • Length
    89' 11"
  • Materials
    Steel Hull /
    Aluminium Superstructure
  • Max. Range
    3000 nm

Show Full Specs Hide Full Specs

Full Specification

Principal Characteristics

  • Length overall 89' 11"
  • Beam 23' 4"
  • Gross Tonnage 140 GT
  • Draft (full load) 5' 11"
  • Length waterline 86' 1"
  • Fuel capacity 4,042 Gallons
  • Fresh Water
    capacity
    687 Gallons
  • Grey water capacity 158 Gallons
  • Black water capacity 158 Gallons
  • Displacement (full load) 264,554 Lbs
  • Max speed 14 Knots
  • Cruising speed 12.5 knots
  • Max Range 3000nm @8 knots
  • Hull Steel
  • Superstructure Aluminium

Accommodation

  • Guests -
  • Max persons on-board 15
  • Total Cabins -
  • Crew 4
  • Crew cabins 2
  • Crew heads -

Yacht Designers

  • Exterior Designer
    Bernd Weel Design
  • Interior Designer
    Franck Darnet Design
  • Naval Architect
    Diana Yacht Design

Engines & Performance

Standard Option



QTY

x 2

Performance

838 HP

(625 Kw)  each @ 2300 rpm

Maximum Speed

14 knots

Engine Details

Show Full Specs Hide Full Specs

Outer Reef 27 YXT FAQ

A selection of frequently asked questions about the Outer Reef 27 YXT model

  • The Naval Architect for Outer Reef 27 YXT is Diana Yacht Design. The Interior Designer for Outer Reef 27 YXT is Franck Darnet Design. The Exterior Designer for Outer Reef 27 YXT is Bernd Weel Design.
  • The Length Overall of Outer Reef 27 YXT is 89' 11" . Her Beam is 23' 4". Her draft at full load is 1.8m. Her Length at the waterline is 86' 1".
