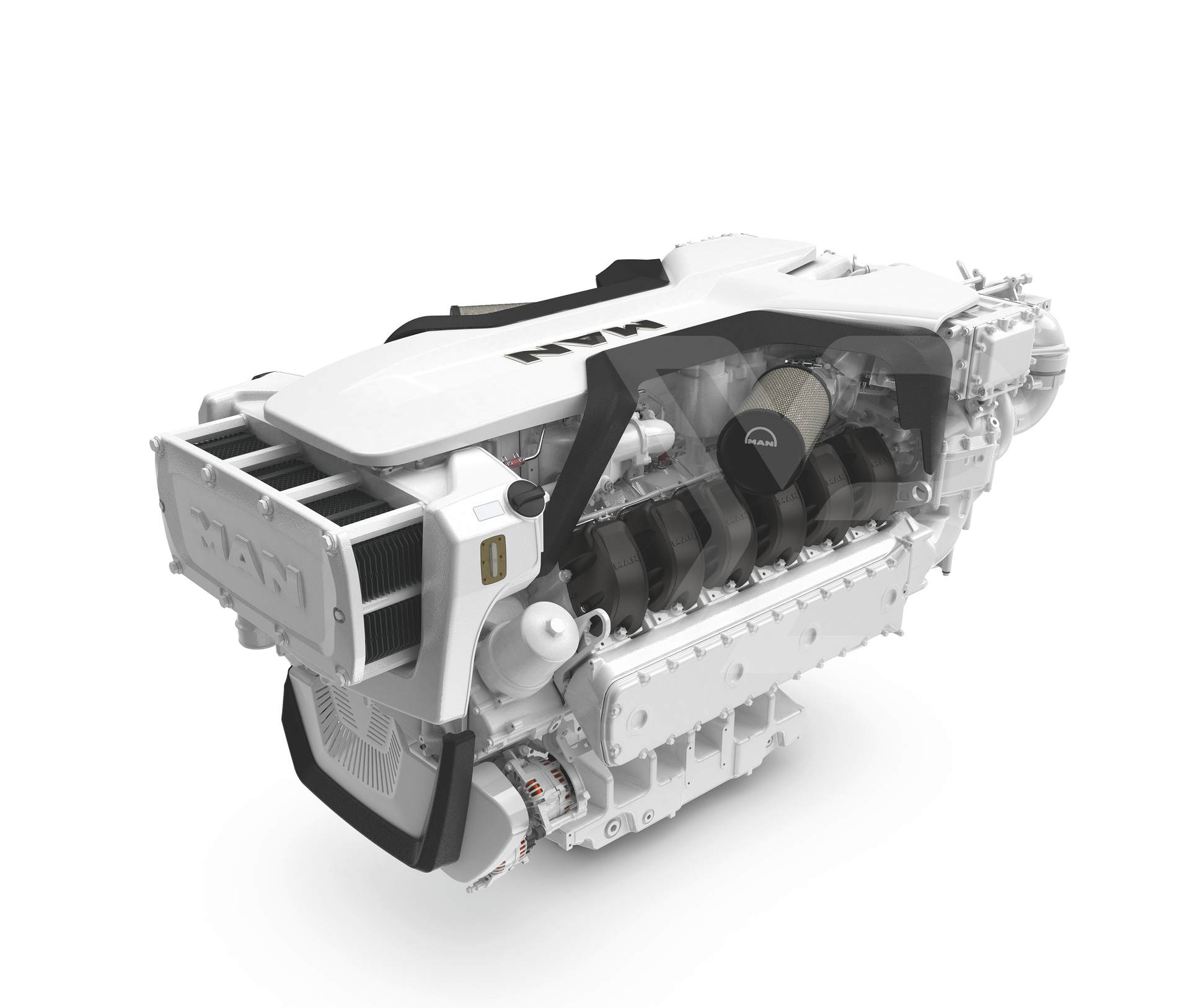

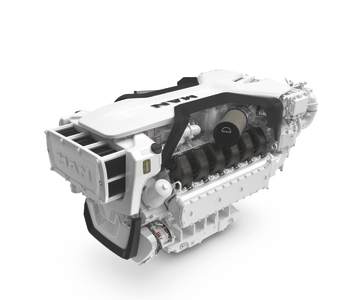

MAN V12X-2200
Key Specifications
-
RATED OUTPUT:2,200 bhp / 1,618 KW / 2,230.58 mhp
-
RATED SPEED:Max 2,300 rpm
-
DISPLACEMENT:29.6 Litres
-
CYLINDERS:V12
-
BORE & STROKE5.43" bore , 6.5" stroke
-
EMISSION COMPLIANCE:EPA Tier 3 , IMO Tier III , IMO Tier II
V12X-2200 Full Specfications
Performance data
-
Bore5.43" .
-
Stroke6.5" .
Exhaust
-
Exhaust emissions:IMO Tier II/IMO Tier III/EPA Tier 3
Dimensions
-
Height:51.97" .
-
Width:45.39" .
-
Length without gearbox:91.93" .
-
Total displacement:8 Gallons
-
Mass5,996.57lbs
Other
-
In production?Yes
